Fujitsu PRIMERGY TX120 S3 (Intel Xeon E3-1260L) SPECpower_ssj2008 = 4,697 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: May 23, 2011
Hardware Availability: Jun-2011 Software Availability: Apr-2011 Publication: Jun 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 53.5 20.4
Calibration 2 53.9 20.4
Calibration 3 54.0 20.5
100% 54.0 20.5
90% 50.2 20.6
80% 45.0 20.6
70% 40.8 20.6
60% 36.7 20.6
50% 33.7 20.5
40% 30.5 20.6
30% 27.3 20.6
20% 23.9 20.6
10% 19.9 20.6
Active Idle 14.9 20.6

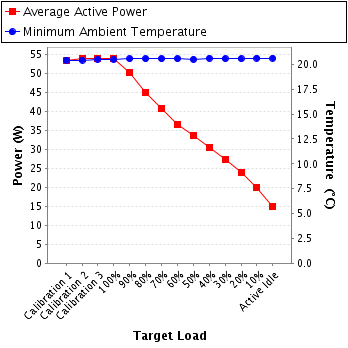

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10119075
Date of Calibration: 16-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 0.293 0.5 0.810 53.5 0.5%
Calibration 2 226 300.0 0.294 0.5 0.812 53.9 0.5%
Calibration 3 226 300.0 0.295 0.5 0.812 54.0 0.5%
100% 226 300.0 0.295 0.5 0.812 54.0 0.5%
90% 227 300.0 0.280 0.5 0.793 50.2 0.6%
80% 227 300.0 0.258 0.5 0.772 45.0 0.6%
70% 227 300.0 0.238 0.5 0.756 40.8 0.6%
60% 226 300.0 0.226 0.5 0.717 36.7 0.7%
50% 227 300.0 0.221 0.5 0.671 33.7 0.8%
40% 227 300.0 0.218 0.2 0.618 30.5 0.6%
30% 227 300.0 0.212 0.2 0.566 27.3 0.6%
20% 227 300.0 0.203 0.2 0.519 23.9 0.7%
10% 227 300.0 0.190 0.2 0.463 19.9 0.8%
Active Idle 227 300.0 0.173 0.2 0.380 14.9 1.0%
Power details for pwr1
