Acer Incorporated Acer AT110 F2 (Intel Xeon E3-1270) SPECpower_ssj2008 = 3,260 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 26, 2011
Hardware Availability: Apr-2011 Software Availability: Dec-2009 Publication: May 18, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 393,522 102 3,872
90% 90.0% 354,617 97.0 3,655
80% 80.0% 315,397 86.6 3,642
70% 69.9% 275,609 75.6 3,644
60% 59.5% 234,743 64.5 3,642
50% 50.3% 198,224 56.7 3,494
40% 40.3% 158,821 48.8 3,255
30% 29.8% 117,494 42.1 2,793
20% 19.9% 78,526 37.8 2,079
10% 9.8% 38,532 32.2 1,196
Active Idle 0 21.3 0
∑ssj_ops / ∑power = 3,260

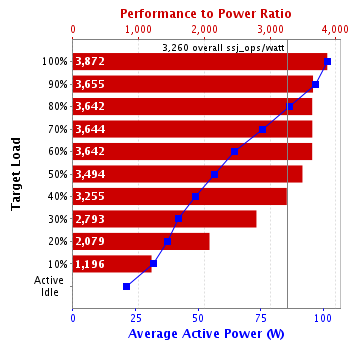

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT110 F2 (Intel Xeon E3-1270)
Form Factor: Tower
CPU Name: Intel Xeon E3-1270
CPU Characteristics: Four core, 3.4GHz, 8MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E ECC; slots 1A,2A
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: FSP450-60EP
Disk Drive: 1 x 1024GB 3.5" SATA, Acer Part#KH.01KW8.009
Disk Controller: Onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Single-port Intel 82579 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1400m -Xmn1950 -Xmx1950m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -XlockReservation -Xnoloa -XtlhPrefetch
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P01
Management Firmware Version: None
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR160 F1
CPU Description: Intel L5520
Memory amount (GB): 3
Software
Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 102 26.6
90% 97.0 26.9
80% 86.6 27.3
70% 75.6 26.3
60% 64.5 26.3
50% 56.7 26.6
40% 48.8 26.7
30% 42.1 26.8
20% 37.8 26.4
10% 32.2 26.2
Active Idle 21.3 26.6
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 1 wire 26.2 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     394,704
Calibration 2     395,211
Calibration 3     393,197
ssj_ops@calibrated=394,204
100% 99.8% 394,204 393,522
90% 90.0% 354,783 354,617
80% 80.0% 315,363 315,397
70% 69.9% 275,943 275,609
60% 59.5% 236,522 234,743
50% 50.3% 197,102 198,224
40% 40.3% 157,682 158,821
30% 29.8% 118,261 117,494
20% 19.9% 78,841 78,526
10% 9.8% 39,420 38,532
Active Idle   0 0
Graph of results
