Acer Incorporated Gateway GT110 F2 (Intel Xeon E3-1270) SPECpower_ssj2008 = 3,270 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 26, 2011
Hardware Availability: Apr-2011 Software Availability: Dec-2009 Publication: May 18, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 103 26.3
Calibration 2 101 26.8
Calibration 3 101 27.2
100% 102 26.7
90% 96.5 26.8
80% 86.2 27.1
70% 76.1 26.7
60% 64.5 26.8
50% 56.0 27.1
40% 49.1 26.6
30% 42.6 26.7
20% 38.0 26.9
10% 33.6 27.1
Active Idle 21.4 27.0

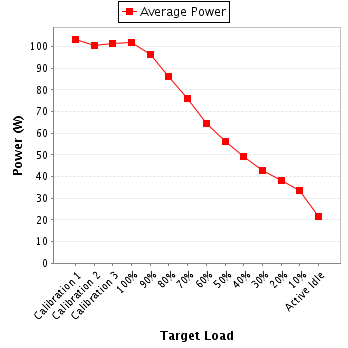

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 0.510 1.0 0.914 103 0.5%
Calibration 2 222 300.0 0.498 1.0 0.912 101 0.5%
Calibration 3 222 300.0 0.501 1.0 0.913 101 0.5%
100% 222 300.0 0.504 1.0 0.913 102 0.5%
90% 222 300.0 0.480 1.0 0.906 96.5 0.5%
80% 222 300.0 0.435 0.5 0.893 86.2 0.4%
70% 222 300.0 0.391 0.5 0.878 76.1 0.4%
60% 222 300.0 0.339 0.5 0.859 64.5 0.5%
50% 222 300.0 0.301 0.5 0.841 56.0 0.5%
40% 222 300.0 0.270 0.5 0.821 49.1 0.5%
30% 222 300.0 0.241 0.5 0.797 42.6 0.6%
20% 222 300.0 0.221 0.5 0.775 38.0 0.7%
10% 222 300.0 0.202 0.5 0.749 33.6 0.7%
Active Idle 222 300.0 0.148 0.2 0.651 21.4 0.6%
Power details for pwr1
