Fujitsu PRIMERGY TX140 S1 (Intel Xeon E3-1260L) SPECpower_ssj2008 = 4,549 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 24, 2011
Hardware Availability: Jun-2011 Software Availability: Apr-2011 Publication: Apr 27, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 53.6 20.6
Calibration 2 53.6 20.6
Calibration 3 53.6 20.6
100% 53.6 20.6
90% 50.2 20.6
80% 46.1 20.6
70% 41.6 20.6
60% 37.8 20.6
50% 34.7 20.6
40% 31.7 20.6
30% 28.8 20.6
20% 25.3 20.6
10% 21.6 20.5
Active Idle 16.8 20.5

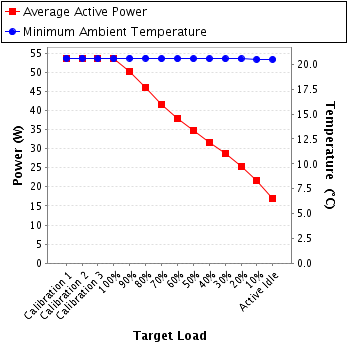

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10119075
Date of Calibration: 16-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 300.0 0.302 0.5 0.773 53.6 0.5%
Calibration 2 230 300.0 0.302 0.5 0.773 53.6 0.5%
Calibration 3 230 300.0 0.302 0.5 0.772 53.6 0.5%
100% 230 300.0 0.302 0.5 0.772 53.6 0.5%
90% 230 300.0 0.289 0.5 0.757 50.2 0.6%
80% 231 300.0 0.272 0.5 0.735 46.1 0.6%
70% 231 300.0 0.254 0.5 0.710 41.6 0.7%
60% 231 300.0 0.239 0.5 0.684 37.8 0.7%
50% 230 300.0 0.228 0.5 0.664 34.7 0.8%
40% 229 300.0 0.217 0.5 0.640 31.7 0.8%
30% 228 300.0 0.205 0.2 0.614 28.8 0.6%
20% 229 300.0 0.193 0.2 0.575 25.3 0.6%
10% 229 300.0 0.179 0.2 0.529 21.6 0.7%
Active Idle 229 300.0 0.160 0.2 0.461 16.8 0.8%

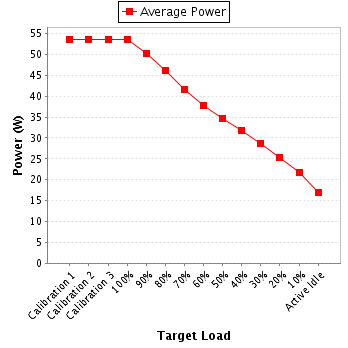

Power details for pwr1
