Acer Incorporated Gateway GR385 F1 ssj_ops@100% = 959,188
ssj_ops@100% per JVM = 239,797
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: May 5, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     968,747
Calibration 2     966,518
Calibration 3     968,639
ssj_ops@calibrated=967,578
100% 99.1% 967,578 959,188
90% 89.6% 870,820 866,566
80% 80.0% 774,062 774,368
70% 69.9% 677,305 676,356
60% 60.4% 580,547 584,607
50% 50.0% 483,789 483,560
40% 40.3% 387,031 389,711
30% 30.1% 290,273 291,473
20% 20.1% 193,516 194,333
10% 10.0% 96,758 96,316
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR385 F1
Form Factor: 2U
CPU Name: AMD Opteron 6176
CPU Characteristics: Twelve Core, 2.30 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, 3A, and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 300GB SATA 10K RPM 2.5" HDD, Acer part #KH.30008.005
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008 Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-MUBP25BG7TM.001 244,419
WIN-MUBP25BG7TM.002 245,479
WIN-MUBP25BG7TM.003 235,143
WIN-MUBP25BG7TM.004 234,146
ssj_ops@100% 959,188
ssj_ops@100% per JVM 239,797

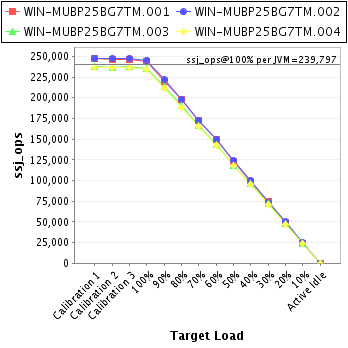

Graph of per-instance results
JVM 'WIN-MUBP25BG7TM.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     246,864
Calibration 2     245,965
Calibration 3     246,402
ssj_ops@calibrated=246,183
100% 99.3% 246,183 244,419
90% 89.2% 221,565 219,483
80% 80.3% 196,947 197,733
70% 70.1% 172,328 172,566
60% 60.6% 147,710 149,217
50% 50.0% 123,092 123,032
40% 40.1% 98,473 98,612
30% 30.3% 73,855 74,491
20% 19.9% 49,237 48,993
10% 9.8% 24,618 24,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUBP25BG7TM.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,351
Calibration 2     247,468
Calibration 3     247,844
ssj_ops@calibrated=247,656
100% 99.1% 247,656 245,479
90% 89.7% 222,890 222,197
80% 79.9% 198,125 197,801
70% 69.6% 173,359 172,332
60% 60.3% 148,594 149,454
50% 50.3% 123,828 124,555
40% 40.5% 99,062 100,223
30% 29.7% 74,297 73,589
20% 20.3% 49,531 50,200
10% 10.1% 24,766 24,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUBP25BG7TM.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,650
Calibration 2     237,101
Calibration 3     237,737
ssj_ops@calibrated=237,419
100% 99.0% 237,419 235,143
90% 89.9% 213,677 213,469
80% 80.3% 189,935 190,532
70% 69.9% 166,193 165,902
60% 60.5% 142,451 143,704
50% 49.5% 118,710 117,625
40% 40.4% 94,968 95,946
30% 30.4% 71,226 72,266
20% 20.2% 47,484 48,055
10% 9.9% 23,742 23,444
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUBP25BG7TM.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,882
Calibration 2     235,984
Calibration 3     236,655
ssj_ops@calibrated=236,320
100% 99.1% 236,320 234,146
90% 89.5% 212,688 211,417
80% 79.7% 189,056 188,302
70% 70.1% 165,424 165,556
60% 60.2% 141,792 142,232
50% 50.1% 118,160 118,349
40% 40.2% 94,528 94,930
30% 30.1% 70,896 71,127
20% 19.9% 47,264 47,085
10% 10.0% 23,632 23,693
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
