Acer Incorporated Gateway GR385 F1 SPECpower_ssj2008 = 2,291 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: May 5, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 293 25.2
Calibration 2 298 24.0
Calibration 3 298 23.8
100% 295 24.2
90% 282 24.4
80% 268 23.9
70% 252 24.2
60% 237 24.8
50% 215 23.7
40% 193 23.8
30% 175 24.4
20% 161 23.8
10% 144 23.7
Active Idle 97.3 24.2

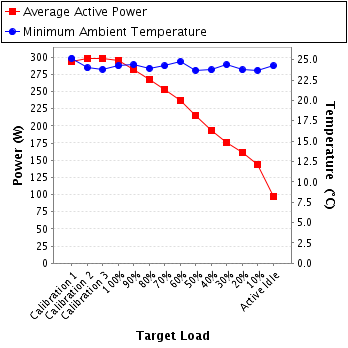

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 1-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.38 5.0 0.963 293 0.7%
Calibration 2 222 300.0 1.40 5.0 0.963 298 0.7%
Calibration 3 222 300.0 1.40 5.0 0.963 298 0.7%
100% 222 300.0 1.38 5.0 0.963 295 0.7%
90% 222 300.0 1.32 5.0 0.961 282 0.7%
80% 222 300.0 1.26 5.0 0.959 268 0.7%
70% 222 300.0 1.19 5.0 0.957 252 0.8%
60% 222 300.0 1.12 5.0 0.954 237 0.8%
50% 222 300.0 1.02 5.0 0.949 215 0.9%
40% 222 300.0 0.925 5.0 0.943 193 0.9%
30% 222 300.0 0.845 2.0 0.937 175 0.5%
20% 222 300.0 0.781 2.0 0.931 161 0.6%
10% 222 300.0 0.706 2.0 0.922 144 0.6%
Active Idle 222 300.0 0.502 2.0 0.874 97.3 0.8%

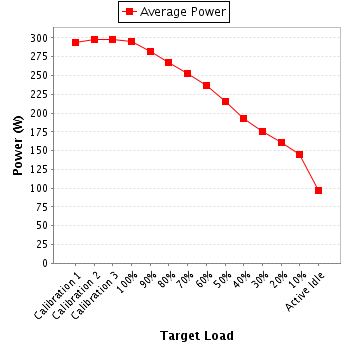

Power details for pwr1
