IBM Corporation IBM System x3550 M3 ssj_ops@100% = 890,651
ssj_ops@100% per JVM = 148,442
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Mar 28, 2011
Hardware Availability: Mar-2011 Software Availability: Oct-2009 Publication: Apr 20, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     890,593
Calibration 2     893,399
Calibration 3     893,355
ssj_ops@calibrated=893,377
100% 99.7% 893,377 890,651
90% 90.3% 804,039 806,317
80% 80.3% 714,702 717,822
70% 70.1% 625,364 626,127
60% 59.9% 536,026 535,435
50% 50.0% 446,689 446,975
40% 40.1% 357,351 357,958
30% 30.0% 268,013 268,151
20% 20.1% 178,675 179,398
10% 10.1% 89,338 89,918
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3550 M3
Form Factor: 1U
CPU Name: Intel Xeon X5675
CPU Characteristics: 6 core, 3.07GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 12 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 3, 6, 12 and 15 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM P/N 39Y7216
Disk Drive: 1 x 50GB SATA SSD
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 150UUS
Management Firmware Version: YUOO91G
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-9K71DJM5IVL.001 147,087
WIN-9K71DJM5IVL.002 147,366
WIN-9K71DJM5IVL.003 150,423
WIN-9K71DJM5IVL.004 149,159
WIN-9K71DJM5IVL.005 148,442
WIN-9K71DJM5IVL.006 148,175
ssj_ops@100% 890,651
ssj_ops@100% per JVM 148,442

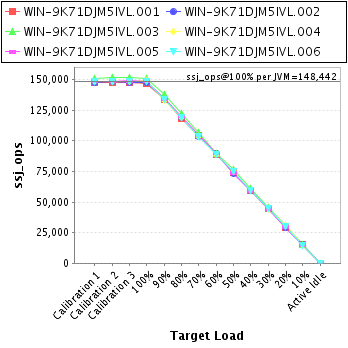

Graph of per-instance results
JVM 'WIN-9K71DJM5IVL.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,395
Calibration 2     147,941
Calibration 3     147,592
ssj_ops@calibrated=147,766
100% 99.5% 147,766 147,087
90% 90.4% 132,990 133,641
80% 80.2% 118,213 118,575
70% 70.8% 103,436 104,547
60% 60.0% 88,660 88,593
50% 50.1% 73,883 74,087
40% 40.0% 59,107 59,178
30% 30.0% 44,330 44,348
20% 20.0% 29,553 29,566
10% 10.2% 14,777 15,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-9K71DJM5IVL.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,291
Calibration 2     148,389
Calibration 3     147,675
ssj_ops@calibrated=148,032
100% 99.5% 148,032 147,366
90% 90.6% 133,229 134,166
80% 80.6% 118,426 119,288
70% 70.0% 103,622 103,576
60% 60.7% 88,819 89,856
50% 49.8% 74,016 73,653
40% 40.2% 59,213 59,524
30% 30.0% 44,410 44,458
20% 19.9% 29,606 29,508
10% 10.5% 14,803 15,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-9K71DJM5IVL.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,766
Calibration 2     151,533
Calibration 3     151,897
ssj_ops@calibrated=151,715
100% 99.1% 151,715 150,423
90% 90.9% 136,544 137,981
80% 80.6% 121,372 122,237
70% 70.3% 106,201 106,596
60% 59.2% 91,029 89,840
50% 50.3% 75,858 76,367
40% 40.2% 60,686 60,918
30% 30.3% 45,515 45,916
20% 20.2% 30,343 30,651
10% 9.9% 15,172 15,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-9K71DJM5IVL.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,413
Calibration 2     148,352
Calibration 3     148,789
ssj_ops@calibrated=148,570
100% 100.4% 148,570 149,159
90% 89.4% 133,713 132,842
80% 80.0% 118,856 118,796
70% 69.4% 103,999 103,146
60% 59.5% 89,142 88,463
50% 50.2% 74,285 74,543
40% 40.0% 59,428 59,434
30% 29.8% 44,571 44,209
20% 20.6% 29,714 30,624
10% 10.0% 14,857 14,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-9K71DJM5IVL.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,603
Calibration 2     148,743
Calibration 3     149,128
ssj_ops@calibrated=148,936
100% 99.7% 148,936 148,442
90% 90.2% 134,042 134,333
80% 80.6% 119,149 120,073
70% 70.5% 104,255 105,018
60% 60.3% 89,361 89,877
50% 49.4% 74,468 73,527
40% 39.8% 59,574 59,324
30% 29.7% 44,681 44,195
20% 19.7% 29,787 29,341
10% 9.9% 14,894 14,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-9K71DJM5IVL.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,125
Calibration 2     148,441
Calibration 3     148,274
ssj_ops@calibrated=148,357
100% 99.9% 148,357 148,175
90% 89.9% 133,521 133,355
80% 80.1% 118,686 118,853
70% 69.6% 103,850 103,244
60% 59.9% 89,014 88,806
50% 50.4% 74,179 74,798
40% 40.2% 59,343 59,580
30% 30.3% 44,507 45,025
20% 20.0% 29,671 29,707
10% 9.9% 14,836 14,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
