SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3550 M3 | SPECpower_ssj2008 = 3,093 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Mar 28, 2011 |
| Hardware Availability: | Mar-2011 | Software Availability: | Oct-2009 | Publication: | Apr 20, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

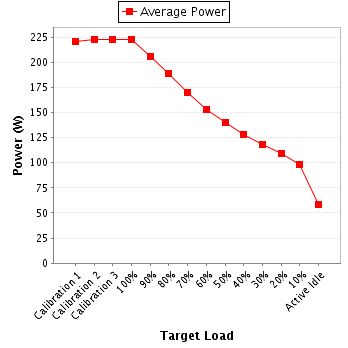

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 221 | 22.4 |
| Calibration 2 | 223 | 22.2 |
| Calibration 3 | 223 | 22.1 |
| 100% | 222 | 22.0 |
| 90% | 205 | 22.0 |
| 80% | 189 | 22.1 |
| 70% | 170 | 22.2 |
| 60% | 153 | 22.0 |
| 50% | 140 | 21.8 |
| 40% | 128 | 21.6 |
| 30% | 118 | 21.4 |
| 20% | 109 | 21.2 |
| 10% | 98.0 | 21.1 |
| Active Idle | 58.4 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT210 + RS-232 |
| Serial Number: | 91JB14536 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-049-02 |
| Date of Calibration: | 08-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi, Inc. |
| Model: | Watchport/H USB |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.11 | 2.0 | 0.952 | 221 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.12 | 2.0 | 0.952 | 223 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.12 | 2.0 | 0.953 | 223 | 0.4% |
| 100% | 209 | 300.0 | 1.12 | 2.0 | 0.952 | 222 | 0.4% |
| 90% | 209 | 300.0 | 1.04 | 2.0 | 0.944 | 205 | 0.5% |
| 80% | 208 | 300.0 | 0.972 | 1.0 | 0.935 | 189 | 0.3% |
| 70% | 208 | 300.0 | 0.887 | 1.0 | 0.922 | 170 | 0.4% |
| 60% | 208 | 300.0 | 0.811 | 1.0 | 0.908 | 153 | 0.4% |
| 50% | 208 | 300.0 | 0.750 | 1.0 | 0.894 | 140 | 0.4% |
| 40% | 208 | 300.0 | 0.700 | 1.0 | 0.879 | 128 | 0.4% |
| 30% | 209 | 300.0 | 0.656 | 1.0 | 0.862 | 118 | 0.5% |
| 20% | 209 | 300.0 | 0.618 | 1.0 | 0.844 | 109 | 0.5% |
| 10% | 208 | 300.0 | 0.575 | 1.0 | 0.818 | 98.0 | 0.5% |
| Active Idle | 209 | 300.0 | 0.421 | 0.5 | 0.665 | 58.4 | 0.6% |
