Hitachi, Ltd. HA8000-bd/BD10X1 SPECpower_ssj2008 = 1,855 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,918 25.7
Calibration 2 1,915 25.5
Calibration 3 1,898 25.4
100% 1,897 25.4
90% 1,768 25.4
80% 1,676 25.4
70% 1,538 25.4
60% 1,450 25.4
50% 1,363 25.2
40% 1,254 25.2
30% 1,199 25.2
20% 1,114 25.3
10% 1,015 25.3
Active Idle 833 25.4

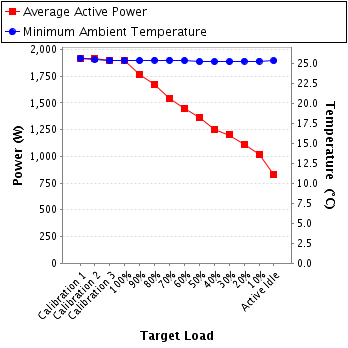

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K947164
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B103687
Date of Calibration: 24-Sep-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Power Distribution Units were placed to connect five power supplies and one power analyzer.
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 9.72 10.0 0.987 1,918 0.3%
Calibration 2 200 300.0 9.70 10.0 0.987 1,915 0.3%
Calibration 3 200 300.0 9.61 10.0 0.987 1,898 0.3%
100% 200 300.0 9.61 10.0 0.987 1,897 0.3%
90% 200 300.0 8.95 10.0 0.988 1,768 0.3%
80% 200 300.0 8.48 10.0 0.988 1,676 0.3%
70% 200 300.0 7.78 10.0 0.988 1,538 0.3%
60% 200 300.0 7.33 10.0 0.988 1,450 0.3%
50% 200 300.0 6.90 10.0 0.988 1,363 0.4%
40% 200 300.0 6.35 10.0 0.988 1,254 0.4%
30% 200 300.0 6.07 10.0 0.988 1,199 0.4%
20% 200 300.0 5.64 10.0 0.988 1,114 0.4%
10% 200 300.0 5.14 10.0 0.987 1,015 0.4%
Active Idle 200 300.0 4.24 10.0 0.983 833 0.5%
Power details for pwr1
