SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AW2000h-AW170h F1 | SPECpower_ssj2008 = 2,769 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Various |
| Hardware Availability: | Feb-2011 | Software Availability: | Dec-2009 | Publication: | Apr 7, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

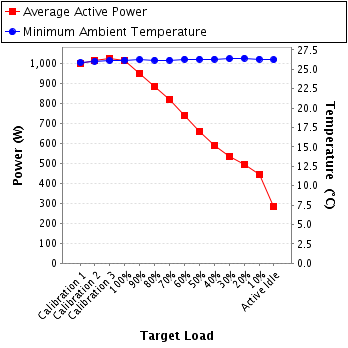

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 997 | 25.9 |
| Calibration 2 | 1,014 | 26.1 |
| Calibration 3 | 1,026 | 26.1 |
| 100% | 1,016 | 26.2 |
| 90% | 949 | 26.2 |
| 80% | 886 | 26.2 |
| 70% | 818 | 26.2 |
| 60% | 741 | 26.3 |
| 50% | 662 | 26.3 |
| 40% | 589 | 26.3 |
| 30% | 532 | 26.4 |
| 20% | 493 | 26.4 |
| 10% | 445 | 26.3 |
| Active Idle | 282 | 26.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H851272 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 10-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |

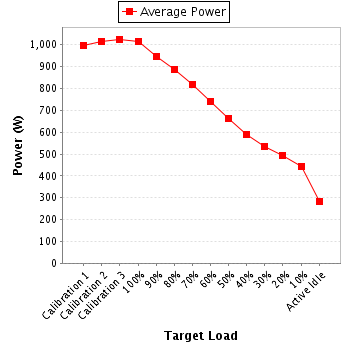

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300.0 | 4.73 | 10.0 | 0.993 | 997 | 0.4% |
| Calibration 2 | 212 | 300.0 | 4.82 | 10.0 | 0.993 | 1,014 | 0.4% |
| Calibration 3 | 212 | 300.0 | 4.87 | 10.0 | 0.993 | 1,026 | 0.4% |
| 100% | 212 | 300.0 | 4.82 | 10.0 | 0.993 | 1,016 | 0.4% |
| 90% | 213 | 300.0 | 4.50 | 10.0 | 0.992 | 949 | 0.4% |
| 80% | 213 | 300.0 | 4.20 | 10.0 | 0.991 | 886 | 0.5% |
| 70% | 213 | 300.0 | 3.88 | 5.0 | 0.990 | 818 | 0.3% |
| 60% | 213 | 300.0 | 3.52 | 5.0 | 0.988 | 741 | 0.3% |
| 50% | 213 | 300.0 | 3.14 | 5.0 | 0.986 | 662 | 0.4% |
| 40% | 213 | 300.0 | 2.81 | 5.0 | 0.984 | 589 | 0.4% |
| 30% | 213 | 300.0 | 2.54 | 5.0 | 0.982 | 532 | 0.4% |
| 20% | 214 | 300.0 | 2.35 | 2.0 | 0.980 | 493 | 0.3% |
| 10% | 214 | 300.0 | 2.13 | 2.0 | 0.977 | 445 | 0.3% |
| Active Idle | 214 | 300.0 | 1.37 | 2.0 | 0.962 | 282 | 0.4% |
