Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 3,567,236
ssj_ops@100% per Host = 891,809
ssj_ops@100% per JVM = 148,635
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Various
Hardware Availability: Jan-2010 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,575,780
Calibration 2     3,582,291
Calibration 3     3,576,256
ssj_ops@calibrated=3,579,273
100% 99.7% 3,579,273 3,567,236
90% 90.2% 3,221,346 3,226,744
80% 80.0% 2,863,419 2,864,067
70% 70.0% 2,505,491 2,506,949
60% 60.0% 2,147,564 2,146,928
50% 49.9% 1,789,637 1,786,137
40% 40.0% 1,431,709 1,433,232
30% 30.0% 1,073,782 1,074,988
20% 20.0% 715,855 716,273
10% 10.1% 357,927 359,849
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 48.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Gateway GW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: Supermicro PWS-1K41P-1R
Network Switch: 16-PORT Gigabit Switch
Network Switch Details: D-Link DGS-1016T
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: <TBD>
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-8T20LUSKNOV 905,102
WIN-R61MSQUQQU7 894,405
WIN-TDM3C83C35P 885,462
WIN-ULK8O9BFFGJ 882,268
ssj_ops@100% 3,567,236
ssj_ops@100% per Host 891,809
ssj_ops@100% per JVM 148,635

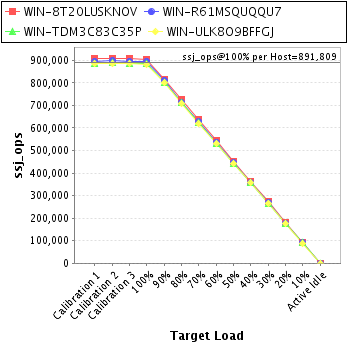

Graph of per-host results
Host 'WIN-8T20LUSKNOV' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     909,602
Calibration 2     908,695
Calibration 3     908,073
ssj_ops@calibrated=908,384
100% 99.6% 908,384 905,102
90% 89.8% 817,546 815,412
80% 80.2% 726,707 728,185
70% 70.2% 635,869 637,611
60% 60.0% 545,031 545,153
50% 49.8% 454,192 452,363
40% 40.0% 363,354 363,537
30% 30.0% 272,515 272,450
20% 20.1% 181,677 182,325
10% 10.1% 90,838 91,426
Active Idle   0 0
Graph of results
Host 'WIN-R61MSQUQQU7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     893,584
Calibration 2     898,635
Calibration 3     894,238
ssj_ops@calibrated=896,437
100% 99.8% 896,437 894,405
90% 90.4% 806,793 810,763
80% 79.6% 717,149 713,942
70% 70.0% 627,506 627,298
60% 59.9% 537,862 536,861
50% 49.8% 448,218 446,561
40% 39.8% 358,575 356,646
30% 30.1% 268,931 269,410
20% 19.9% 179,287 178,482
10% 10.1% 89,644 90,256
Active Idle   0 0
Graph of results
Host 'WIN-TDM3C83C35P' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     887,836
Calibration 2     890,108
Calibration 3     887,041
ssj_ops@calibrated=888,575
100% 99.6% 888,575 885,462
90% 90.1% 799,717 800,256
80% 80.0% 710,860 711,162
70% 70.1% 622,002 623,133
60% 60.0% 533,145 533,178
50% 50.0% 444,287 444,426
40% 40.2% 355,430 356,946
30% 29.9% 266,572 266,052
20% 20.1% 177,715 178,425
10% 10.1% 88,857 90,043
Active Idle   0 0
Graph of results
Host 'WIN-ULK8O9BFFGJ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     884,758
Calibration 2     884,852
Calibration 3     886,903
ssj_ops@calibrated=885,878
100% 99.6% 885,878 882,268
90% 90.3% 797,290 800,313
80% 80.2% 708,702 710,778
70% 69.9% 620,114 618,907
60% 60.0% 531,527 531,736
50% 50.0% 442,939 442,788
40% 40.2% 354,351 356,103
30% 30.1% 265,763 267,075
20% 20.0% 177,176 177,041
10% 9.9% 88,588 88,125
Active Idle   0 0
Graph of results
