Hitachi, Ltd. HA8000/RS210 (LK1) ssj_ops@100% = 899,893
ssj_ops@100% per JVM = 74,991
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 3, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     886,387
Calibration 2     905,166
Calibration 3     903,904
ssj_ops@calibrated=904,535
100% 99.5% 904,535 899,893
90% 90.1% 814,081 814,899
80% 80.1% 723,628 724,671
70% 69.8% 633,174 631,231
60% 60.0% 542,721 543,078
50% 50.2% 452,267 453,862
40% 40.1% 361,814 362,301
30% 29.9% 271,360 270,639
20% 20.1% 180,907 181,382
10% 10.0% 90,453 90,091
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS210 (LK1)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9; slots DIMM_#02,#04.#06,#08,#10 and DIMM_#12 populated
Power Supply Quantity and Rating (W): 1 x 770
Power Supply Details: DELTA DPS-750CB (Hitachi P/N:GQ-BP2341)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70645G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 7TTSHE-F9
Management Firmware Version: 08.38
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-OS8AI92DU4C.001 74,728
WIN-OS8AI92DU4C.002 74,781
WIN-OS8AI92DU4C.003 74,772
WIN-OS8AI92DU4C.004 75,375
WIN-OS8AI92DU4C.005 74,456
WIN-OS8AI92DU4C.006 75,227
WIN-OS8AI92DU4C.007 74,740
WIN-OS8AI92DU4C.008 75,233
WIN-OS8AI92DU4C.009 74,351
WIN-OS8AI92DU4C.010 75,423
WIN-OS8AI92DU4C.011 76,223
WIN-OS8AI92DU4C.012 74,584
ssj_ops@100% 899,893
ssj_ops@100% per JVM 74,991

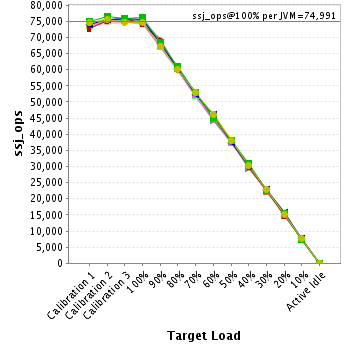

Graph of per-instance results

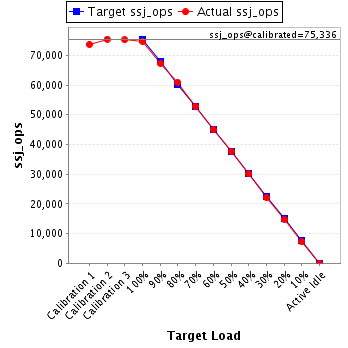

JVM 'WIN-OS8AI92DU4C.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,714
Calibration 2     75,461
Calibration 3     75,211
ssj_ops@calibrated=75,336
100% 99.2% 75,336 74,728
90% 89.5% 67,802 67,398
80% 80.8% 60,269 60,895
70% 70.0% 52,735 52,765
60% 59.7% 45,202 44,985
50% 50.1% 37,668 37,754
40% 39.9% 30,134 30,077
30% 29.5% 22,601 22,229
20% 19.7% 15,067 14,841
10% 9.7% 7,534 7,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

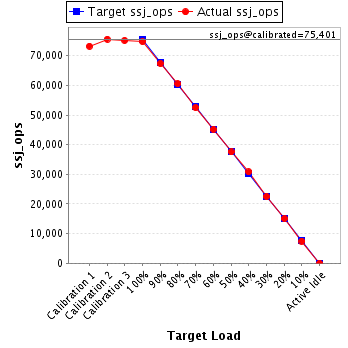

JVM 'WIN-OS8AI92DU4C.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,256
Calibration 2     75,601
Calibration 3     75,200
ssj_ops@calibrated=75,401
100% 99.2% 75,401 74,781
90% 89.3% 67,860 67,340
80% 80.3% 60,320 60,549
70% 69.6% 52,780 52,498
60% 59.9% 45,240 45,201
50% 49.8% 37,700 37,551
40% 40.9% 30,160 30,806
30% 29.9% 22,620 22,539
20% 20.0% 15,080 15,062
10% 9.9% 7,540 7,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,847
Calibration 2     75,596
Calibration 3     75,162
ssj_ops@calibrated=75,379
100% 99.2% 75,379 74,772
90% 89.3% 67,841 67,320
80% 80.8% 60,303 60,879
70% 68.9% 52,765 51,952
60% 59.9% 45,227 45,175
50% 50.5% 37,690 38,059
40% 40.9% 30,152 30,799
30% 29.9% 22,614 22,533
20% 20.3% 15,076 15,277
10% 9.7% 7,538 7,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

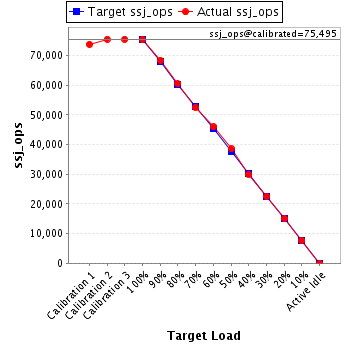

JVM 'WIN-OS8AI92DU4C.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,798
Calibration 2     75,485
Calibration 3     75,505
ssj_ops@calibrated=75,495
100% 99.8% 75,495 75,375
90% 90.6% 67,945 68,373
80% 80.1% 60,396 60,476
70% 69.7% 52,846 52,589
60% 60.9% 45,297 45,969
50% 51.1% 37,747 38,588
40% 39.7% 30,198 29,996
30% 29.8% 22,648 22,528
20% 20.0% 15,099 15,096
10% 10.2% 7,549 7,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

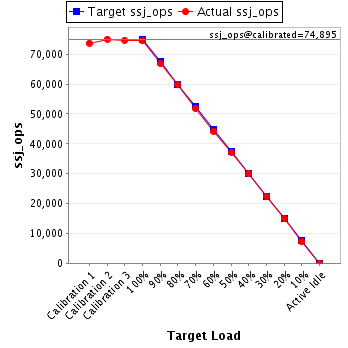

JVM 'WIN-OS8AI92DU4C.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,749
Calibration 2     75,046
Calibration 3     74,744
ssj_ops@calibrated=74,895
100% 99.4% 74,895 74,456
90% 89.3% 67,406 66,901
80% 79.9% 59,916 59,870
70% 69.1% 52,427 51,785
60% 59.1% 44,937 44,271
50% 49.5% 37,448 37,056
40% 40.1% 29,958 29,998
30% 29.8% 22,469 22,322
20% 20.1% 14,979 15,022
10% 9.7% 7,490 7,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,173
Calibration 2     75,303
Calibration 3     75,423
ssj_ops@calibrated=75,363
100% 99.8% 75,363 75,227
90% 90.2% 67,826 67,966
80% 79.2% 60,290 59,684
70% 69.8% 52,754 52,632
60% 60.6% 45,218 45,683
50% 50.4% 37,681 37,997
40% 40.0% 30,145 30,169
30% 29.8% 22,609 22,433
20% 19.7% 15,073 14,871
10% 10.0% 7,536 7,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,811
Calibration 2     74,457
Calibration 3     74,763
ssj_ops@calibrated=74,610
100% 100.2% 74,610 74,740
90% 90.9% 67,149 67,842
80% 80.9% 59,688 60,378
70% 71.1% 52,227 53,053
60% 60.2% 44,766 44,918
50% 50.6% 37,305 37,716
40% 39.6% 29,844 29,574
30% 30.0% 22,383 22,418
20% 20.2% 14,922 15,037
10% 10.2% 7,461 7,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,663
Calibration 2     75,202
Calibration 3     75,492
ssj_ops@calibrated=75,347
100% 99.8% 75,347 75,233
90% 91.9% 67,812 69,239
80% 80.2% 60,278 60,436
70% 70.1% 52,743 52,812
60% 58.9% 45,208 44,375
50% 50.0% 37,674 37,688
40% 39.1% 30,139 29,448
30% 30.2% 22,604 22,741
20% 19.9% 15,069 14,960
10% 10.0% 7,535 7,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,909
Calibration 2     75,370
Calibration 3     75,777
ssj_ops@calibrated=75,573
100% 98.4% 75,573 74,351
90% 91.0% 68,016 68,759
80% 79.4% 60,458 60,033
70% 70.1% 52,901 52,954
60% 60.0% 45,344 45,341
50% 50.4% 37,787 38,054
40% 39.9% 30,229 30,119
30% 29.8% 22,672 22,494
20% 19.7% 15,115 14,855
10% 10.3% 7,557 7,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

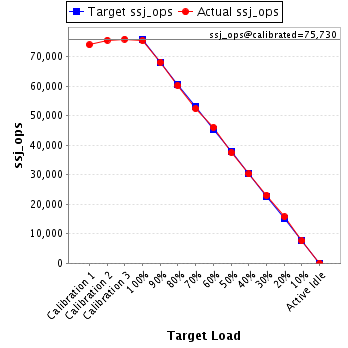

JVM 'WIN-OS8AI92DU4C.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,997
Calibration 2     75,541
Calibration 3     75,920
ssj_ops@calibrated=75,730
100% 99.6% 75,730 75,423
90% 89.9% 68,157 68,117
80% 79.5% 60,584 60,233
70% 69.1% 53,011 52,344
60% 60.8% 45,438 46,008
50% 49.5% 37,865 37,473
40% 39.9% 30,292 30,250
30% 30.4% 22,719 22,985
20% 20.8% 15,146 15,736
10% 10.0% 7,573 7,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,883
Calibration 2     76,548
Calibration 3     75,978
ssj_ops@calibrated=76,263
100% 99.9% 76,263 76,223
90% 89.6% 68,637 68,348
80% 80.1% 61,011 61,119
70% 69.3% 53,384 52,860
60% 59.2% 45,758 45,165
50% 49.8% 38,132 37,966
40% 40.5% 30,505 30,863
30% 29.6% 22,879 22,582
20% 20.3% 15,253 15,483
10% 9.7% 7,626 7,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OS8AI92DU4C.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,586
Calibration 2     75,558
Calibration 3     74,727
ssj_ops@calibrated=75,143
100% 99.3% 75,143 74,584
90% 89.6% 67,629 67,296
80% 80.0% 60,114 60,118
70% 70.5% 52,600 52,986
60% 61.2% 45,086 45,989
50% 50.5% 37,571 37,960
40% 40.2% 30,057 30,201
30% 30.4% 22,543 22,836
20% 20.2% 15,029 15,142
10% 10.1% 7,514 7,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
