SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3400 M3 | SPECpower_ssj2008 = 2,891 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Jan 27, 2011 |
| Hardware Availability: | Mar-2011 | Software Availability: | Oct-2009 | Publication: | Mar 9, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

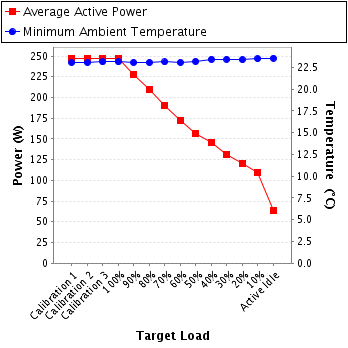

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 247 | 23.1 |
| Calibration 2 | 247 | 23.1 |
| Calibration 3 | 247 | 23.1 |
| 100% | 246 | 23.1 |
| 90% | 227 | 23.1 |
| 80% | 209 | 23.1 |
| 70% | 190 | 23.1 |
| 60% | 172 | 23.1 |
| 50% | 157 | 23.2 |
| 40% | 145 | 23.4 |
| 30% | 131 | 23.4 |
| 20% | 120 | 23.4 |
| 10% | 109 | 23.5 |
| Active Idle | 63.2 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 + RS-232 |
| Serial Number: | 91JB14536 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-049-02 |
| Date of Calibration: | 08-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi, Inc. |
| Model: | Watchport/H USB |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.28 | 2.0 | 0.920 | 247 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.29 | 2.0 | 0.920 | 247 | 0.4% |
| Calibration 3 | 209 | 300.0 | 1.29 | 2.0 | 0.920 | 247 | 0.4% |
| 100% | 209 | 300.0 | 1.28 | 2.0 | 0.919 | 246 | 0.4% |
| 90% | 209 | 300.0 | 1.19 | 2.0 | 0.914 | 227 | 0.5% |
| 80% | 209 | 300.0 | 1.10 | 2.0 | 0.907 | 209 | 0.5% |
| 70% | 209 | 300.0 | 1.01 | 2.0 | 0.899 | 190 | 0.5% |
| 60% | 209 | 300.0 | 0.923 | 1.0 | 0.889 | 172 | 0.4% |
| 50% | 210 | 300.0 | 0.851 | 1.0 | 0.879 | 157 | 0.4% |
| 40% | 210 | 300.0 | 0.796 | 1.0 | 0.871 | 145 | 0.4% |
| 30% | 209 | 300.0 | 0.730 | 1.0 | 0.859 | 131 | 0.4% |
| 20% | 210 | 300.0 | 0.676 | 1.0 | 0.847 | 120 | 0.5% |
| 10% | 210 | 300.0 | 0.628 | 1.0 | 0.832 | 109 | 0.5% |
| Active Idle | 210 | 300.0 | 0.406 | 0.5 | 0.741 | 63.2 | 0.5% |
