IBM Corporation System x3630 M3 SPECpower_ssj2008 = 2,722 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: NanKang, Taipei, Taiwan Test Date: Jan 31, 2011
Hardware Availability: Mar-2011 Software Availability: Jun-2009 Publication: Mar 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 251 21.0
Calibration 2 252 21.1
Calibration 3 252 21.1
100% 251 21.2
90% 234 21.2
80% 217 21.2
70% 199 21.2
60% 182 21.2
50% 168 21.1
40% 155 21.1
30% 143 21.1
20% 133 21.1
10% 120 21.1
Active Idle 80.2 21.0

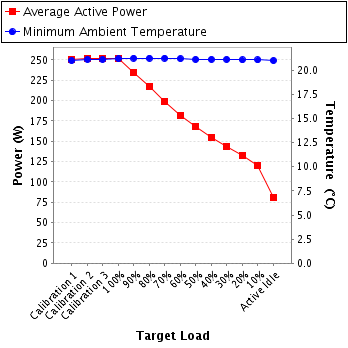

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 10-04-BAC-377-03
Date of Calibration: 23-Apr-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.23 2.0 0.981 251 0.4%
Calibration 2 208 300.0 1.23 2.0 0.981 252 0.4%
Calibration 3 208 300.0 1.24 2.0 0.981 252 0.4%
100% 208 300.0 1.23 2.0 0.981 251 0.4%
90% 208 300.0 1.15 2.0 0.978 234 0.4%
80% 208 300.0 1.07 2.0 0.974 217 0.4%
70% 208 300.0 0.988 2.0 0.970 199 0.5%
60% 208 300.0 0.907 1.0 0.964 182 0.3%
50% 208 300.0 0.842 1.0 0.959 168 0.3%
40% 208 300.0 0.781 1.0 0.953 155 0.4%
30% 209 300.0 0.727 1.0 0.946 143 0.4%
20% 209 300.0 0.677 1.0 0.939 133 0.4%
10% 208 300.0 0.623 1.0 0.927 120 0.4%
Active Idle 209 300.0 0.445 0.5 0.863 80.2 0.4%
Power details for pwr1
