SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3620 M3 | SPECpower_ssj2008 = 3,039 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Jan 27, 2011 |
| Hardware Availability: | Mar-2011 | Software Availability: | Jun-2009 | Publication: | Mar 2, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

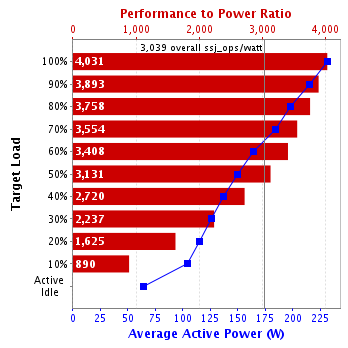

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.9% | 932,916 | 231 | 4,031 |
| 90% | 89.8% | 838,119 | 215 | 3,893 |
| 80% | 79.8% | 745,354 | 198 | 3,758 |
| 70% | 70.2% | 655,208 | 184 | 3,554 |
| 60% | 59.8% | 558,720 | 164 | 3,408 |
| 50% | 50.2% | 468,248 | 150 | 3,131 |
| 40% | 39.9% | 372,349 | 137 | 2,720 |
| 30% | 30.2% | 281,519 | 126 | 2,237 |
| 20% | 20.1% | 187,342 | 115 | 1,625 |
| 10% | 9.9% | 92,380 | 104 | 890 |
| Active Idle | 0 | 63.9 | 0 | |
| ∑ssj_ops / ∑power = | 3,039 | |||
| Set Identifier: | sut |
| Set Description: | IBM System x3620 M3 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3620 M3 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | 6-Core, 3.07GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3L-10600R; slots 3, 6, 8, 11, 14 and 16 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM P/N:39Y7216 |
| Disk Drive: | 1 x 500GB 7200RPM 3.5" SATA (IBM P/N:42C0468) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel 82575EB Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0,F00,F000,F0000,F00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | HSE117WUS |
| Management Firmware Version: | YUOO91I |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IntelliStation M Pro |
| CPU Description: | Intel Pentium 4 561 |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional SP2 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-377-03 |
| Date of Calibration: | 23-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 231 | 21.4 |
| 90% | 215 | 21.4 |
| 80% | 198 | 21.5 |
| 70% | 184 | 21.6 |
| 60% | 164 | 21.7 |
| 50% | 150 | 21.8 |
| 40% | 137 | 21.9 |
| 30% | 126 | 21.9 |
| 20% | 115 | 22.0 |
| 10% | 104 | 22.1 |
| Active Idle | 63.9 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.4 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 932,707 | ||
| Calibration 2 | 933,726 | ||
| Calibration 3 | 933,457 | ||
| ssj_ops@calibrated=933,592 | |||
| 100% | 99.9% | 933,592 | 932,916 |
| 90% | 89.8% | 840,233 | 838,119 |
| 80% | 79.8% | 746,873 | 745,354 |
| 70% | 70.2% | 653,514 | 655,208 |
| 60% | 59.8% | 560,155 | 558,720 |
| 50% | 50.2% | 466,796 | 468,248 |
| 40% | 39.9% | 373,437 | 372,349 |
| 30% | 30.2% | 280,078 | 281,519 |
| 20% | 20.1% | 186,718 | 187,342 |
| 10% | 9.9% | 93,359 | 92,380 |
| Active Idle | 0 | 0 | |
