Hitachi, Ltd. HA8000/RS440 (AK1) ssj_ops@100% = 1,957,863
ssj_ops@100% per JVM = 122,366
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jan 26, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,977,163
Calibration 2     1,977,474
Calibration 3     1,968,060
ssj_ops@calibrated=1,972,767
100% 99.2% 1,972,767 1,957,863
90% 90.1% 1,775,490 1,776,976
80% 80.1% 1,578,214 1,579,986
70% 70.1% 1,380,937 1,383,565
60% 59.8% 1,183,660 1,180,280
50% 50.0% 986,384 987,051
40% 40.0% 789,107 789,305
30% 30.2% 591,830 596,725
20% 19.9% 394,553 393,167
10% 10.1% 197,277 199,081
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS440 (AK1)
Form Factor: 4U
CPU Name: Intel Xeon X7560
CPU Characteristics: Eight Core, 2.26GHz, 24MB L3 Cache
CPU Frequency (MHz): 2260
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-10600R-09 ECC CL9; slots DIMM 1B and DIMM 1D populated on each memory riser board
Power Supply Quantity and Rating (W): 2 x 850
Power Supply Details: DELTA DPS-850FB (Hitachi P/N:GQ-BP2251)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70646G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576NS Gigabit Network Connection(I/O riser board)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1875m -Xmx1875m -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: QSSC-S4R.QCI.01.00.0028
Management Firmware Version: BMC : 1.18
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-ME4Q5L8RPRB.001 122,328
WIN-ME4Q5L8RPRB.002 122,241
WIN-ME4Q5L8RPRB.003 123,780
WIN-ME4Q5L8RPRB.004 121,872
WIN-ME4Q5L8RPRB.005 120,679
WIN-ME4Q5L8RPRB.006 123,984
WIN-ME4Q5L8RPRB.007 123,210
WIN-ME4Q5L8RPRB.008 123,948
WIN-ME4Q5L8RPRB.009 120,411
WIN-ME4Q5L8RPRB.010 122,167
WIN-ME4Q5L8RPRB.011 121,208
WIN-ME4Q5L8RPRB.012 121,546
WIN-ME4Q5L8RPRB.013 122,147
WIN-ME4Q5L8RPRB.014 123,602
WIN-ME4Q5L8RPRB.015 121,712
WIN-ME4Q5L8RPRB.016 123,027
ssj_ops@100% 1,957,863
ssj_ops@100% per JVM 122,366

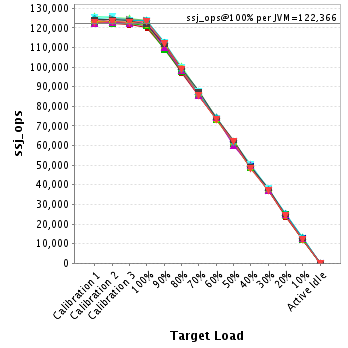

Graph of per-instance results
JVM 'WIN-ME4Q5L8RPRB.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,910
Calibration 2     123,915
Calibration 3     122,813
ssj_ops@calibrated=123,364
100% 99.2% 123,364 122,328
90% 90.6% 111,028 111,709
80% 79.7% 98,691 98,325
70% 69.4% 86,355 85,615
60% 60.0% 74,019 74,037
50% 50.4% 61,682 62,139
40% 39.9% 49,346 49,166
30% 30.5% 37,009 37,666
20% 19.9% 24,673 24,533
10% 10.2% 12,336 12,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,244
Calibration 2     123,257
Calibration 3     123,162
ssj_ops@calibrated=123,209
100% 99.2% 123,209 122,241
90% 90.6% 110,889 111,625
80% 80.1% 98,568 98,691
70% 71.1% 86,247 87,619
60% 59.9% 73,926 73,823
50% 49.9% 61,605 61,519
40% 40.0% 49,284 49,339
30% 29.9% 36,963 36,892
20% 20.1% 24,642 24,794
10% 10.0% 12,321 12,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,887
Calibration 2     125,048
Calibration 3     124,583
ssj_ops@calibrated=124,815
100% 99.2% 124,815 123,780
90% 89.2% 112,334 111,339
80% 80.3% 99,852 100,274
70% 70.3% 87,371 87,731
60% 59.6% 74,889 74,377
50% 49.8% 62,408 62,204
40% 40.3% 49,926 50,340
30% 30.2% 37,445 37,755
20% 19.6% 24,963 24,485
10% 10.3% 12,482 12,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,196
Calibration 2     123,247
Calibration 3     122,830
ssj_ops@calibrated=123,038
100% 99.1% 123,038 121,872
90% 90.3% 110,735 111,161
80% 80.5% 98,431 98,998
70% 70.5% 86,127 86,706
60% 59.7% 73,823 73,513
50% 50.1% 61,519 61,651
40% 40.6% 49,215 49,971
30% 30.1% 36,912 37,062
20% 19.6% 24,608 24,136
10% 9.9% 12,304 12,144
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,427
Calibration 2     122,808
Calibration 3     121,996
ssj_ops@calibrated=122,402
100% 98.6% 122,402 120,679
90% 90.8% 110,162 111,120
80% 79.3% 97,921 97,120
70% 70.3% 85,681 86,072
60% 60.0% 73,441 73,434
50% 50.1% 61,201 61,353
40% 40.0% 48,961 48,970
30% 30.2% 36,721 36,991
20% 20.1% 24,480 24,650
10% 10.2% 12,240 12,527
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,102
Calibration 2     125,579
Calibration 3     123,964
ssj_ops@calibrated=124,772
100% 99.4% 124,772 123,984
90% 90.0% 112,294 112,300
80% 80.1% 99,817 99,995
70% 70.1% 87,340 87,473
60% 59.0% 74,863 73,671
50% 49.9% 62,386 62,315
40% 40.2% 49,909 50,118
30% 30.5% 37,431 38,103
20% 19.8% 24,954 24,651
10% 10.0% 12,477 12,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

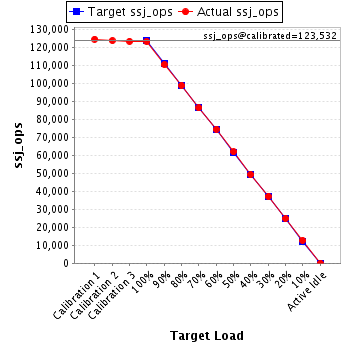

JVM 'WIN-ME4Q5L8RPRB.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,514
Calibration 2     123,674
Calibration 3     123,389
ssj_ops@calibrated=123,532
100% 99.7% 123,532 123,210
90% 89.3% 111,178 110,350
80% 79.9% 98,825 98,758
70% 69.9% 86,472 86,342
60% 60.3% 74,119 74,506
50% 50.1% 61,766 61,892
40% 39.8% 49,413 49,155
30% 30.1% 37,059 37,189
20% 20.1% 24,706 24,865
10% 10.3% 12,353 12,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,933
Calibration 2     124,539
Calibration 3     124,112
ssj_ops@calibrated=124,326
100% 99.7% 124,326 123,948
90% 90.2% 111,893 112,119
80% 80.0% 99,461 99,444
70% 69.7% 87,028 86,629
60% 59.3% 74,595 73,744
50% 50.2% 62,163 62,360
40% 39.9% 49,730 49,574
30% 29.8% 37,298 37,081
20% 20.0% 24,865 24,896
10% 9.9% 12,433 12,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,457
Calibration 2     122,041
Calibration 3     121,865
ssj_ops@calibrated=121,953
100% 98.7% 121,953 120,411
90% 89.8% 109,758 109,556
80% 79.9% 97,562 97,399
70% 70.3% 85,367 85,748
60% 60.6% 73,172 73,890
50% 50.0% 60,976 60,999
40% 40.0% 48,781 48,777
30% 30.3% 36,586 36,924
20% 19.6% 24,391 23,944
10% 9.9% 12,195 12,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,372
Calibration 2     123,170
Calibration 3     122,351
ssj_ops@calibrated=122,761
100% 99.5% 122,761 122,167
90% 90.0% 110,485 110,535
80% 80.4% 98,209 98,755
70% 70.3% 85,932 86,268
60% 59.6% 73,656 73,191
50% 50.6% 61,380 62,137
40% 40.0% 49,104 49,142
30% 30.4% 36,828 37,283
20% 19.7% 24,552 24,217
10% 10.2% 12,276 12,507
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,606
Calibration 2     122,452
Calibration 3     122,041
ssj_ops@calibrated=122,247
100% 99.2% 122,247 121,208
90% 89.2% 110,022 109,057
80% 80.2% 97,797 98,000
70% 70.4% 85,573 86,121
60% 59.8% 73,348 73,047
50% 49.9% 61,123 61,001
40% 39.8% 48,899 48,702
30% 30.4% 36,674 37,176
20% 20.3% 24,449 24,765
10% 10.0% 12,225 12,243
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,097
Calibration 2     123,088
Calibration 3     122,631
ssj_ops@calibrated=122,860
100% 98.9% 122,860 121,546
90% 89.7% 110,574 110,160
80% 80.7% 98,288 99,172
70% 69.9% 86,002 85,891
60% 59.6% 73,716 73,238
50% 49.9% 61,430 61,247
40% 39.8% 49,144 48,904
30% 30.2% 36,858 37,153
20% 20.0% 24,572 24,562
10% 10.1% 12,286 12,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,298
Calibration 2     122,958
Calibration 3     121,997
ssj_ops@calibrated=122,478
100% 99.7% 122,478 122,147
90% 89.8% 110,230 110,040
80% 80.1% 97,982 98,080
70% 70.0% 85,734 85,726
60% 60.6% 73,487 74,231
50% 49.2% 61,239 60,275
40% 40.5% 48,991 49,639
30% 30.1% 36,743 36,875
20% 20.3% 24,496 24,816
10% 10.2% 12,248 12,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,773
Calibration 2     124,129
Calibration 3     123,791
ssj_ops@calibrated=123,960
100% 99.7% 123,960 123,602
90% 90.9% 111,564 112,733
80% 79.6% 99,168 98,717
70% 69.3% 86,772 85,942
60% 59.9% 74,376 74,247
50% 49.8% 61,980 61,720
40% 40.0% 49,584 49,562
30% 30.1% 37,188 37,363
20% 20.4% 24,792 25,234
10% 10.5% 12,396 13,010
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,495
Calibration 2     124,433
Calibration 3     123,836
ssj_ops@calibrated=124,135
100% 98.0% 124,135 121,712
90% 89.7% 111,721 111,299
80% 80.2% 99,308 99,524
70% 70.9% 86,894 88,050
60% 59.5% 74,481 73,859
50% 50.2% 62,067 62,365
40% 39.9% 49,654 49,531
30% 30.6% 37,240 37,958
20% 19.7% 24,827 24,464
10% 9.9% 12,413 12,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ME4Q5L8RPRB.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,853
Calibration 2     123,136
Calibration 3     122,698
ssj_ops@calibrated=122,917
100% 100.1% 122,917 123,027
90% 91.0% 110,625 111,874
80% 80.3% 98,334 98,733
70% 69.7% 86,042 85,630
60% 59.8% 73,750 73,474
50% 50.3% 61,459 61,872
40% 39.4% 49,167 48,415
30% 30.3% 36,875 37,254
20% 19.7% 24,583 24,156
10% 9.9% 12,292 12,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
