Hitachi, Ltd. HA8000/RS440 (AK1) SPECpower_ssj2008 = 1,212 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jan 26, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,091 23.5
Calibration 2 1,104 23.5
Calibration 3 1,104 23.6
100% 1,103 23.6
90% 1,050 23.6
80% 980 23.6
70% 895 23.6
60% 839 23.6
50% 785 23.6
40% 737 23.6
30% 698 23.6
20% 661 23.6
10% 625 23.6
Active Idle 575 23.6

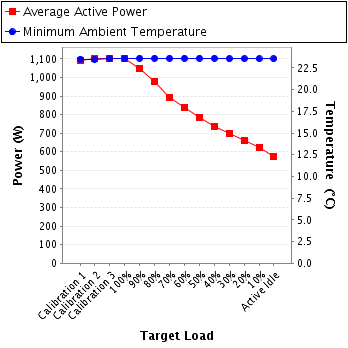

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B102481
Date of Calibration: 07-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 199 300.0 5.50 10.0 0.997 1,091 0.4%
Calibration 2 199 300.0 5.57 10.0 0.996 1,104 0.4%
Calibration 3 199 300.0 5.57 10.0 0.996 1,104 0.4%
100% 199 300.0 5.57 10.0 0.996 1,103 0.4%
90% 199 300.0 5.29 10.0 0.997 1,050 0.4%
80% 199 300.0 4.93 5.0 0.998 980 0.3%
70% 199 300.0 4.51 5.0 0.998 895 0.3%
60% 199 300.0 4.23 5.0 0.997 839 0.3%
50% 199 300.0 3.95 5.0 0.997 785 0.3%
40% 199 300.0 3.71 5.0 0.997 737 0.3%
30% 199 300.0 3.52 5.0 0.996 698 0.3%
20% 199 300.0 3.33 5.0 0.995 661 0.3%
10% 199 300.0 3.15 5.0 0.994 625 0.4%
Active Idle 199 300.0 2.90 5.0 0.993 575 0.4%
Power details for pwr1
