Hewlett-Packard Company ProLiant ML110 G3 (Historical) SPECpower_ssj2008 = 190 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 21, 2011
Hardware Availability: Feb-2006 Software Availability: May-2009 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 171 24.1
Calibration 2 171 24.3
Calibration 3 170 24.7
100% 169 24.6
90% 164 24.7
80% 157 24.8
70% 153 24.7
60% 147 24.8
50% 137 24.8
40% 131 24.6
30% 125 24.6
20% 118 24.3
10% 112 24.3
Active Idle 105 24.1

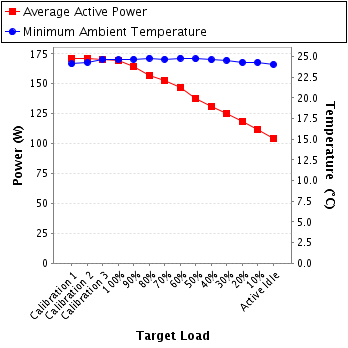

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45373
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 07-1673
Date of Calibration: 28-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main air intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 122 150.0 1.44 2.0 0.969 171 0.3%
Calibration 2 122 150.0 1.45 2.0 0.969 171 0.3%
Calibration 3 122 150.0 1.44 2.0 0.969 170 0.3%
100% 122 150.0 1.43 2.0 0.969 169 0.3%
90% 122 150.0 1.39 2.0 0.967 164 0.3%
80% 122 150.0 1.34 2.0 0.964 157 0.3%
70% 122 150.0 1.30 2.0 0.962 153 0.4%
60% 122 150.0 1.26 2.0 0.959 147 0.4%
50% 122 150.0 1.18 2.0 0.957 137 0.4%
40% 122 150.0 1.13 2.0 0.955 131 0.4%
30% 122 150.0 1.08 2.0 0.954 125 0.4%
20% 122 150.0 1.02 2.0 0.955 118 0.4%
10% 122 150.0 0.956 2.0 0.959 112 0.4%
Active Idle 122 150.0 0.887 2.0 0.966 105 0.4%

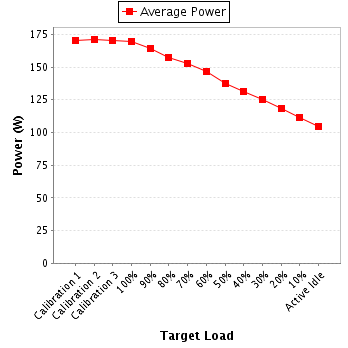

Power details for pwr1
