Hewlett-Packard Company ProLiant ML110 G4 SPECpower_ssj2008 = 268 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 19, 2011
Hardware Availability: Nov-2006 Software Availability: May-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.2% 54,479 117 467
90% 90.3% 49,096 114 430
80% 81.0% 44,054 112 394
70% 69.8% 37,963 108 350
60% 61.0% 33,168 106 313
50% 49.3% 26,801 102 262
40% 40.7% 22,139 99.5 222
30% 30.0% 16,312 96.0 170
20% 19.8% 10,776 92.6 116
10% 10.5% 5,712 89.4 63.9
Active Idle 0 86.0 0
∑ssj_ops / ∑power = 268

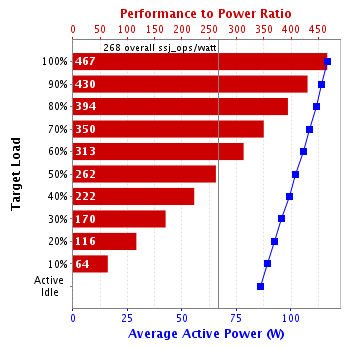

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant ML110 G4
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant ML110 G4
Form Factor: Tower
CPU Name: Intel Xeon Processor 3040
CPU Characteristics: Dual-Core, 1.86 GHz, 2 MB L2 Cache, 1066 MHz system bus
CPU Frequency (MHz): 1860
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 2 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 4 x 1024 MB
Memory Details: 1GB 2Rx8 PC2-5300E; all slots populated
Power Supply Quantity and Rating (W): 1 x 370
Power Supply Details: HP part #416121-001
Disk Drive: 2 x 146GB 15K RPM SAS RAID 1
Disk Controller: HP 8 Internal Port SAS Host Bus Adapter with RAID
# and type of Network Interface Cards (NICs) Installed: 1 x NC320i Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2003, Enterprise x64 Edition
OS Version: SP2, Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms2800m -Xmx2800m -Xns2660m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 2800
JVM Maximum Heap (MB): 2800
JVM Address Bits: 64
Boot Firmware Version: 010 2007.07.20
Management Firmware Version: 2.12
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetcher disabled in BIOS, Adjacent Cache Line Prefetch disabled in BIOS
Management Firmware Settings
Default
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Super Micro Computer, Inc.
Model: Supermicro 6025W-NTR+V
CPU Description: Intel Xeon Processor E5472
Memory amount (GB): 16
Software
Operating System (OS): Microsoft Windows Server 2003, Enterprise Edition, Service Pack 2
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.5.0_14-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45373
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 07-1673
Date of Calibration: 28-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main air intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 117 25.2
90% 114 25.4
80% 112 25.3
70% 108 25.3
60% 106 25.1
50% 102 25.1
40% 99.5 25.2
30% 96.0 25.1
20% 92.6 25.1
10% 89.4 25.1
Active Idle 86.0 25.0
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 25.0 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     54,240
Calibration 2     54,407
Calibration 3     54,317
ssj_ops@calibrated=54,362
100% 100.2% 54,362 54,479
90% 90.3% 48,926 49,096
80% 81.0% 43,490 44,054
70% 69.8% 38,053 37,963
60% 61.0% 32,617 33,168
50% 49.3% 27,181 26,801
40% 40.7% 21,745 22,139
30% 30.0% 16,309 16,312
20% 19.8% 10,872 10,776
10% 10.5% 5,436 5,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
