Acer Incorporated AT310 F1 ssj_ops@100% = 309,401
ssj_ops@100% per JVM = 154,701
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Jan 10, 2011
Hardware Availability: Mar-2010 Software Availability: Dec-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     309,986
Calibration 2     310,359
Calibration 3     309,793
ssj_ops@calibrated=310,076
100% 99.8% 310,076 309,401
90% 89.9% 279,068 278,676
80% 80.4% 248,061 249,194
70% 70.3% 217,053 217,895
60% 60.2% 186,046 186,620
50% 49.8% 155,038 154,372
40% 39.9% 124,030 123,759
30% 30.0% 93,023 92,955
20% 19.9% 62,015 61,754
10% 9.9% 31,008 30,617
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: AT310 F1
Form Factor: Tower
CPU Name: Intel Xeon X3470
CPU Characteristics: Quad-Core, 2.93GHz, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 4 cores, 1 chip, 1 core/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600R; slots 1A and 2A are populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: FSP450-60EP
Disk Drive: 1 x 320GB 7200RPM SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x single-port Intel 82574L Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Balance power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
OS Version: 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM <build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_049398 <JIT enabled, AOT enabled>
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -ms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P05
Management Firmware Version: 01.60
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CN4GEN917KL.001 154,200
WIN-CN4GEN917KL.002 155,201
ssj_ops@100% 309,401
ssj_ops@100% per JVM 154,701

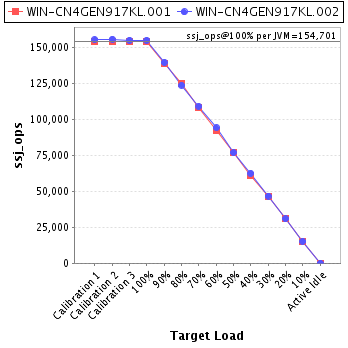

Graph of per-instance results
JVM 'WIN-CN4GEN917KL.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,385
Calibration 2     154,364
Calibration 3     154,466
ssj_ops@calibrated=154,415
100% 99.9% 154,415 154,200
90% 89.9% 138,973 138,845
80% 81.1% 123,532 125,226
70% 70.3% 108,090 108,617
60% 59.8% 92,649 92,282
50% 50.0% 77,207 77,280
40% 39.5% 61,766 61,061
30% 29.9% 46,324 46,149
20% 20.0% 30,883 30,887
10% 9.9% 15,441 15,293
Active Idle   0 0
Graph of results
JVM 'WIN-CN4GEN917KL.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,602
Calibration 2     155,995
Calibration 3     155,327
ssj_ops@calibrated=155,661
100% 99.7% 155,661 155,201
90% 89.8% 140,095 139,831
80% 79.6% 124,529 123,968
70% 70.2% 108,963 109,277
60% 60.6% 93,397 94,338
50% 49.5% 77,830 77,092
40% 40.3% 62,264 62,698
30% 30.1% 46,698 46,807
20% 19.8% 31,132 30,867
10% 9.8% 15,566 15,323
Active Idle   0 0
Graph of results
