SGI Rackable C2112-4TY14 SPECpower_ssj2008 = 2,788 overall ssj_ops/watt
Test Sponsor: SGI SPEC License #: 4 Test Method: Multi Node
Tested By: SGI Test Location: Fremont, CA, USA Test Date: Jan 6, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2010 Publication: Jan 26, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 2,891,044 724 3,993
90% 90.2% 2,617,220 682 3,836
80% 80.2% 2,329,179 644 3,618
70% 70.2% 2,037,153 603 3,377
60% 59.9% 1,737,271 561 3,096
50% 49.9% 1,447,887 523 2,771
40% 40.1% 1,162,805 487 2,388
30% 30.0% 870,820 452 1,925
20% 19.9% 577,665 418 1,382
10% 10.0% 290,898 376 773
Active Idle 0 255 0
∑ssj_ops / ∑power = 2,788

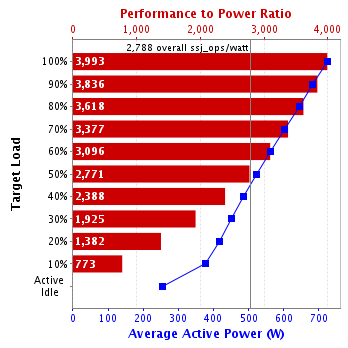

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 64.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Rackable C2112
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1400
Power Supply Details: SGI Part# 060-0315-001
Network Switch: 24 port Gigabit Ethernet switch
Network Switch Details: SMC8824M SMC Tigerstack II
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: Rackable C2112-4TY14
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: SGI
Model: Rackable C2112-4TY14
Form Factor: Blade
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.27 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R; slots 1A and 2A populated for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60 GB SATA SSD, SGI Part #SGICSTE025M31-0060
Disk Controller: Intel ESB2 based Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82574L Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: power saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
OS Version: 64bit
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1600m -Xms2000m -Xmx2000m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /AFFINITY [F F0 F00 F000 F0000 F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: 2.0c.b01
Management Firmware Version: None
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server Community Edition V2.1.1.4 for windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: Dell Precision 330
CPU Description: Intel Pentium(R) 4 CPU 1400 MHz
Memory amount (GB): 0.5
Software
Operating System (OS): Microsoft Windows XP Professional SP2
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.5-32_o-121899-1.6.0_14-20091001-2107-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd
Model: WT210
Serial Number: 91H132263
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE Laboratories Inc
Calibration Label: 678681
Date of Calibration: 06-Dec-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1,2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc
Model: Watchport/H
Driver Version: 4.50.14.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 724 20.4
90% 682 20.4
80% 644 20.3
70% 603 20.3
60% 561 20.4
50% 523 20.4
40% 487 20.4
30% 452 20.4
20% 418 20.5
10% 376 20.6
Active Idle 255 20.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.3 8
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,890,650
Calibration 2     2,903,120
Calibration 3     2,901,918
ssj_ops@calibrated=2,902,519
100% 99.6% 2,902,519 2,891,044
90% 90.2% 2,612,267 2,617,220
80% 80.2% 2,322,015 2,329,179
70% 70.2% 2,031,763 2,037,153
60% 59.9% 1,741,511 1,737,271
50% 49.9% 1,451,260 1,447,887
40% 40.1% 1,161,008 1,162,805
30% 30.0% 870,756 870,820
20% 19.9% 580,504 577,665
10% 10.0% 290,252 290,898
Active Idle   0 0
Graph of results
See the Aggregate Performance Report for additional details.
