NEC Corporation Express5800/A1080a-E ssj_ops@100% = 3,646,995
ssj_ops@100% per JVM = 455,874
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Dec 17, 2010
Hardware Availability: Jan-2011 Software Availability: Sep-2010 Publication: Jan 26, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,657,625
Calibration 2     3,677,895
Calibration 3     3,659,407
ssj_ops@calibrated=3,668,651
100% 99.4% 3,668,651 3,646,995
90% 90.0% 3,301,786 3,302,360
80% 80.3% 2,934,921 2,945,038
70% 70.0% 2,568,056 2,568,463
60% 60.0% 2,201,191 2,200,029
50% 50.0% 1,834,326 1,834,898
40% 39.9% 1,467,460 1,464,388
30% 30.0% 1,100,595 1,099,560
20% 19.9% 733,730 731,784
10% 10.0% 366,865 366,109
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/A1080a-E (Intel Xeon X7560, 2.26 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/A1080a-E
Form Factor: 7U
CPU Name: Intel Xeon X7560
CPU Characteristics: Octa-Core, 2.26 GHz, 24 MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 64 cores, 8 chips, 8 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 32 x 4096 MB
Memory Details: 4GB 2Rx4 PC3-8500R ECC CL7; slots DIMM#1-DIMM#4 populated on each PMM (Processor Memory Module)
Power Supply Quantity and Rating (W): 2 x 2200
Power Supply Details: NEC RH1685
Disk Drive: 1 x 300GB 10krpm HDD 2.5inch SAS, NEC P/N:NE3105-104
Disk Controller: 6Gbps SAS RAID Controller for Embedded HDD/SSD, NEC P/N:NE3104-001
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_21 Performance Release
JVM Command-line Options: -Xms14400m -Xmx14400m -Xmn13200m -XX:+AggressiveOpts -XX:+UseBiasedLocking -XX:+UseStringCache -XX:+OptimizeStringConcat -XX:+UseCompressedStrings -XX:+UseParallelOldGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseCompressedOops -XX:+AlwaysPreTouch -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15
JVM Affinity: start /affinity [FFFF,FFFF,FFFF0000,FFFF0000,FFFF00000000,FFFF00000000,FFFF000000000000,FFFF000000000000]
JVM Instances: 8
JVM Initial Heap (MB): 14400
JVM Maximum Heap (MB): 14400
JVM Address Bits: 64
Boot Firmware Version: 1.65
Management Firmware Version: 2.0.0.8
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
A1080a.001 443,534
A1080a.002 453,474
A1080a.003 459,155
A1080a.004 455,813
A1080a.005 460,274
A1080a.006 454,589
A1080a.007 458,286
A1080a.008 461,869
ssj_ops@100% 3,646,995
ssj_ops@100% per JVM 455,874

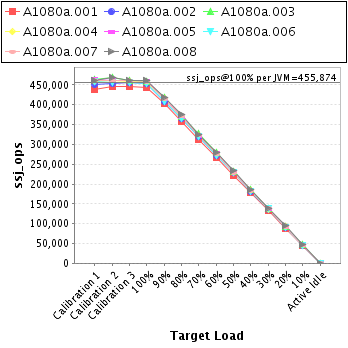

Graph of per-instance results
JVM 'A1080a.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     438,974
Calibration 2     445,706
Calibration 3     445,460
ssj_ops@calibrated=445,583
100% 99.5% 445,583 443,534
90% 90.4% 401,025 402,874
80% 80.3% 356,466 357,592
70% 70.1% 311,908 312,144
60% 59.9% 267,350 266,864
50% 49.9% 222,791 222,434
40% 40.0% 178,233 178,364
30% 29.8% 133,675 132,885
20% 20.0% 89,117 88,987
10% 10.0% 44,558 44,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     451,697
Calibration 2     454,126
Calibration 3     454,968
ssj_ops@calibrated=454,547
100% 99.8% 454,547 453,474
90% 89.9% 409,092 408,701
80% 80.3% 363,637 364,801
70% 70.2% 318,183 319,062
60% 59.9% 272,728 272,206
50% 50.3% 227,273 228,747
40% 39.8% 181,819 180,874
30% 30.1% 136,364 136,798
20% 20.0% 90,909 90,785
10% 9.8% 45,455 44,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     462,823
Calibration 2     468,005
Calibration 3     460,550
ssj_ops@calibrated=464,278
100% 98.9% 464,278 459,155
90% 89.9% 417,850 417,508
80% 79.9% 371,422 371,128
70% 70.3% 324,994 326,353
60% 60.0% 278,567 278,613
50% 49.9% 232,139 231,738
40% 40.2% 185,711 186,631
30% 30.0% 139,283 139,073
20% 19.8% 92,856 91,830
10% 10.0% 46,428 46,331
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     458,882
Calibration 2     461,805
Calibration 3     459,585
ssj_ops@calibrated=460,695
100% 98.9% 460,695 455,813
90% 90.1% 414,626 415,179
80% 80.1% 368,556 369,092
70% 70.1% 322,487 322,899
60% 59.7% 276,417 275,260
50% 49.8% 230,348 229,354
40% 40.0% 184,278 184,299
30% 29.7% 138,209 136,853
20% 19.9% 92,139 91,635
10% 9.9% 46,070 45,692
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     464,201
Calibration 2     462,453
Calibration 3     461,183
ssj_ops@calibrated=461,818
100% 99.7% 461,818 460,274
90% 90.0% 415,636 415,727
80% 80.2% 369,454 370,298
70% 69.7% 323,273 321,691
60% 60.2% 277,091 278,188
50% 50.1% 230,909 231,489
40% 39.9% 184,727 184,199
30% 29.9% 138,545 137,888
20% 19.9% 92,364 91,943
10% 10.0% 46,182 46,047
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     457,839
Calibration 2     455,279
Calibration 3     456,021
ssj_ops@calibrated=455,650
100% 99.8% 455,650 454,589
90% 89.4% 410,085 407,429
80% 80.1% 364,520 364,864
70% 69.9% 318,955 318,670
60% 59.9% 273,390 272,855
50% 50.3% 227,825 229,218
40% 39.9% 182,260 181,815
30% 30.2% 136,695 137,783
20% 20.0% 91,130 90,973
10% 10.1% 45,565 45,823
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     461,881
Calibration 2     460,917
Calibration 3     460,235
ssj_ops@calibrated=460,576
100% 99.5% 460,576 458,286
90% 90.2% 414,518 415,542
80% 80.5% 368,461 370,792
70% 70.3% 322,403 323,707
60% 60.0% 276,346 276,506
50% 49.7% 230,288 228,734
40% 39.8% 184,230 183,110
30% 30.1% 138,173 138,827
20% 19.8% 92,115 91,402
10% 9.9% 46,058 45,580
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     461,328
Calibration 2     469,605
Calibration 3     461,404
ssj_ops@calibrated=465,504
100% 99.2% 465,504 461,869
90% 90.1% 418,954 419,399
80% 80.9% 372,403 376,470
70% 69.6% 325,853 323,937
60% 60.1% 279,302 279,537
50% 50.1% 232,752 233,183
40% 39.8% 186,202 185,096
30% 30.0% 139,651 139,453
20% 20.2% 93,101 94,229
10% 10.2% 46,550 47,336
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
