NEC Corporation Express5800/R140b-4 SPECpower_ssj2008 = 1,314 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Dec 4, 2010
Hardware Availability: May-2010 Software Availability: Sep-2010 Publication: Jan 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 908 20.9
Calibration 2 914 20.9
Calibration 3 915 21.0
100% 913 20.9
90% 878 20.9
80% 840 21.0
70% 801 20.9
60% 762 20.9
50% 718 20.9
40% 673 21.0
30% 628 21.0
20% 583 20.9
10% 540 20.9
Active Idle 498 20.9

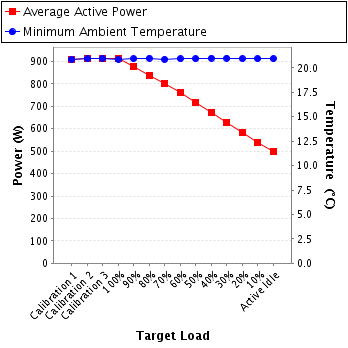

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928024
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-95429
Date of Calibration: 4-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 201 300.0 4.53 5.0 0.998 908 0.3%
Calibration 2 201 300.0 4.55 5.0 0.998 914 0.3%
Calibration 3 201 300.0 4.56 5.0 0.998 915 0.3%
100% 201 300.0 4.56 5.0 0.998 913 0.3%
90% 200 300.0 4.39 5.0 0.998 878 0.3%
80% 200 300.0 4.22 5.0 0.998 840 0.3%
70% 200 300.0 4.02 5.0 0.997 801 0.3%
60% 201 300.0 3.81 5.0 0.997 762 0.3%
50% 200 300.0 3.59 5.0 0.996 718 0.3%
40% 201 300.0 3.36 5.0 0.995 673 0.3%
30% 204 300.0 3.11 5.0 0.993 628 0.4%
20% 204 300.0 2.88 5.0 0.992 583 0.4%
10% 204 300.0 2.68 5.0 0.992 540 0.4%
Active Idle 204 300.0 2.47 5.0 0.991 498 0.4%
Power details for pwr1
