Hewlett-Packard Company ProLiant DL170e G6 SPECpower_ssj2008 = 3,212 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Nov 13, 2010
Hardware Availability: Nov-2010 Software Availability: Sep-2009 Publication: Dec 1, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 653 24.6
Calibration 2 662 24.8
Calibration 3 662 24.8
100% 660 24.8
90% 617 24.8
80% 576 24.9
70% 532 24.8
60% 490 24.8
50% 451 24.8
40% 415 24.6
30% 382 24.7
20% 349 24.9
10% 306 24.7
Active Idle 178 24.8

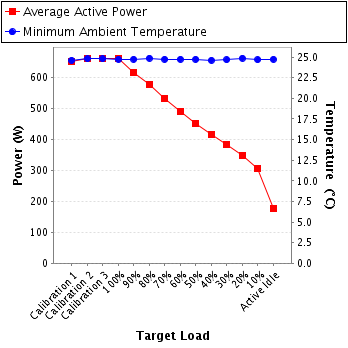

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45371
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705420
Date of Calibration: 10-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to SUT Power Supplies
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 3.14 5.0 0.991 653 0.4%
Calibration 2 210 300.0 3.19 5.0 0.991 662 0.4%
Calibration 3 209 300.0 3.19 5.0 0.991 662 0.4%
100% 210 300.0 3.18 5.0 0.991 660 0.4%
90% 210 300.0 2.97 5.0 0.990 617 0.4%
80% 210 300.0 2.78 5.0 0.988 576 0.4%
70% 210 300.0 2.57 5.0 0.987 532 0.4%
60% 210 300.0 2.37 5.0 0.986 490 0.4%
50% 210 300.0 2.18 5.0 0.984 451 0.5%
40% 210 300.0 2.01 5.0 0.982 415 0.5%
30% 210 300.0 1.86 5.0 0.981 382 0.5%
20% 210 300.0 1.70 5.0 0.980 349 0.6%
10% 210 300.0 1.50 2.0 0.974 306 0.3%
Active Idle 210 300.0 0.892 2.0 0.951 178 0.5%

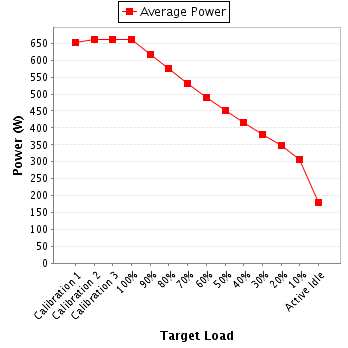

Power details for pwr1
