Acer Incorporated Acer AR320 F1 (Intel Xeon X3470, 2.93 GHz) SPECpower_ssj2008 = 1,911 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Oct 25, 2010
Hardware Availability: Mar-2010 Software Availability: Dec-2009 Publication: Dec 1, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 124 21.9
Calibration 2 125 22.1
Calibration 3 125 22.1
100% 124 22.1
90% 116 22.4
80% 107 22.5
70% 97.9 22.5
60% 89.8 22.5
50% 80.3 22.6
40% 71.9 22.5
30% 63.4 22.6
20% 55.0 22.6
10% 47.3 22.6
Active Idle 39.6 22.6

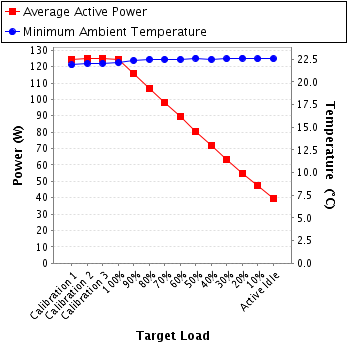

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232-C
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T9903260701
Date of Calibration: 30-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: Temperature@lert
Driver Version: 2.6.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 115 150.0 1.09 1.0 0.985 124 0.3%
Calibration 2 115 150.0 1.10 1.0 0.985 125 0.3%
Calibration 3 115 150.0 1.10 1.0 0.985 125 0.3%
100% 115 150.0 1.09 1.0 0.985 124 0.3%
90% 115 150.0 1.02 1.0 0.982 116 0.3%
80% 115 150.0 0.946 1.0 0.977 107 0.3%
70% 115 150.0 0.874 1.0 0.971 97.9 0.3%
60% 115 150.0 0.806 1.0 0.966 89.8 0.3%
50% 115 150.0 0.725 1.0 0.960 80.3 0.3%
40% 115 150.0 0.653 1.0 0.955 71.9 0.4%
30% 116 150.0 0.579 1.0 0.949 63.4 0.4%
20% 116 150.0 0.504 1.0 0.946 55.0 0.4%
10% 116 150.0 0.435 1.0 0.943 47.3 0.5%
Active Idle 116 150.0 0.364 1.0 0.943 39.6 0.5%
Power details for pwr1
