Acer Incorporated Gateway GW2000h-GW175h F1 SPECpower_ssj2008 = 2,481 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 5, 2010
Hardware Availability: Aug-2010 Software Availability: Dec-2009 Publication: Nov 10, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,099 23.3
Calibration 2 1,113 23.1
Calibration 3 1,117 23.6
100% 1,111 23.7
90% 1,044 23.0
80% 984 23.1
70% 925 23.7
60% 857 23.8
50% 779 23.0
40% 693 23.1
30% 611 23.8
20% 538 23.2
10% 473 22.9
Active Idle 284 23.3

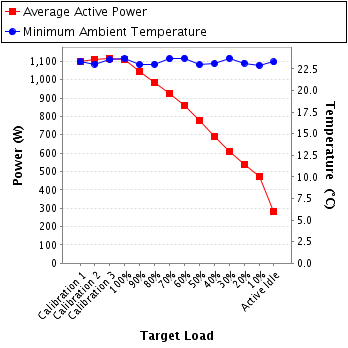

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 1-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 5.15 10.0 0.994 1,099 0.4%
Calibration 2 215 300.0 5.20 10.0 0.994 1,113 0.4%
Calibration 3 215 300.0 5.22 10.0 0.994 1,117 0.4%
100% 215 300.0 5.19 10.0 0.994 1,111 0.4%
90% 216 300.0 4.86 10.0 0.993 1,044 0.4%
80% 217 300.0 4.58 10.0 0.993 984 0.4%
70% 214 300.0 4.35 5.0 0.992 925 0.3%
60% 214 300.0 4.04 5.0 0.992 857 0.3%
50% 215 300.0 3.66 5.0 0.990 779 0.3%
40% 215 300.0 3.26 5.0 0.989 693 0.3%
30% 215 300.0 2.88 5.0 0.987 611 0.4%
20% 216 300.0 2.53 5.0 0.985 538 0.4%
10% 216 300.0 2.23 5.0 0.982 473 0.5%
Active Idle 217 300.0 1.35 2.0 0.968 284 0.4%

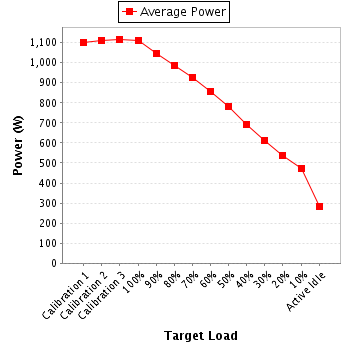

Power details for pwr1
