Acer Incorporated Acer AT350 F1 (Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 2,518 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Sep 14, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 258 26.9
Calibration 2 260 27.0
Calibration 3 259 27.4
100% 259 27.4
90% 243 27.2
80% 229 27.2
70% 214 27.2
60% 198 27.2
50% 180 27.2
40% 164 27.2
30% 150 27.2
20% 139 27.2
10% 127 27.4
Active Idle 78.8 27.2

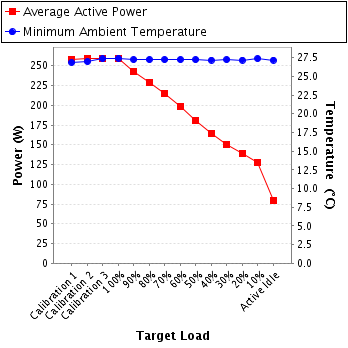

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.22 2.0 0.961 258 0.4%
Calibration 2 221 300.0 1.22 2.0 0.961 260 0.4%
Calibration 3 221 300.0 1.22 2.0 0.961 259 0.4%
100% 221 300.0 1.22 2.0 0.961 259 0.4%
90% 221 300.0 1.15 2.0 0.958 243 0.4%
80% 221 300.0 1.09 2.0 0.954 229 0.4%
70% 221 300.0 1.02 1.0 0.950 214 0.3%
60% 221 300.0 0.948 1.0 0.945 198 0.3%
50% 221 300.0 0.869 1.0 0.939 180 0.3%
40% 221 300.0 0.794 1.0 0.933 164 0.4%
30% 221 300.0 0.732 1.0 0.926 150 0.4%
20% 221 300.0 0.685 1.0 0.920 139 0.4%
10% 221 300.0 0.631 1.0 0.910 127 0.4%
Active Idle 222 300.0 0.418 1.0 0.852 78.8 0.6%
Power details for pwr1
