SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation System x3630 M3 | SPECpower_ssj2008 = 2,550 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Jul 29, 2010 |
| Hardware Availability: | Sep-2010 | Software Availability: | Jun-2009 | Publication: | Sep 22, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

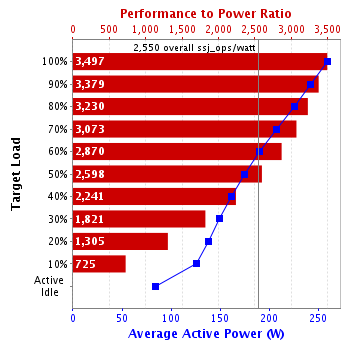

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 906,596 | 259 | 3,497 |
| 90% | 89.9% | 817,765 | 242 | 3,379 |
| 80% | 80.2% | 729,454 | 226 | 3,230 |
| 70% | 70.1% | 637,669 | 207 | 3,073 |
| 60% | 59.9% | 544,724 | 190 | 2,870 |
| 50% | 50.0% | 454,703 | 175 | 2,598 |
| 40% | 39.8% | 362,172 | 162 | 2,241 |
| 30% | 30.0% | 272,803 | 150 | 1,821 |
| 20% | 19.9% | 180,900 | 139 | 1,305 |
| 10% | 10.1% | 91,422 | 126 | 725 |
| Active Idle | 0 | 84.6 | 0 | |
| ∑ssj_ops / ∑power = | 2,550 | |||
| Set Identifier: | sut |
| Set Description: | IBM Corporation System x3630 M3 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | System x3630 M3 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | 6-Core, 2.93GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3L-10600R; slots 3, 6, 8, 11, 14 and 16 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM P/N:39Y7206 |
| Disk Drive: | 1 x 146GB 10K rpm 6Gbps SAS 2.5" (IBM P/N:42D0636) |
| Disk Controller: | ServeRAID M1015 SAS/SATA Controller (IBM P/N:46M0831) |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel 82575EB Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0,F00,F000,F0000,F00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | HSE115TUS |
| Management Firmware Version: | YUOO75J |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IntelliStation M Pro |
| CPU Description: | Intel Pentium 4 561 |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional SP2 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-377-03 |
| Date of Calibration: | 23-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 259 | 32.2 |
| 90% | 242 | 32.6 |
| 80% | 226 | 32.3 |
| 70% | 207 | 31.8 |
| 60% | 190 | 31.2 |
| 50% | 175 | 30.7 |
| 40% | 162 | 30.1 |
| 30% | 150 | 29.6 |
| 20% | 139 | 29.1 |
| 10% | 126 | 28.6 |
| Active Idle | 84.6 | 27.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 27.8 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 907,221 | ||
| Calibration 2 | 908,681 | ||
| Calibration 3 | 909,597 | ||
| ssj_ops@calibrated=909,139 | |||
| 100% | 99.7% | 909,139 | 906,596 |
| 90% | 89.9% | 818,225 | 817,765 |
| 80% | 80.2% | 727,311 | 729,454 |
| 70% | 70.1% | 636,397 | 637,669 |
| 60% | 59.9% | 545,483 | 544,724 |
| 50% | 50.0% | 454,569 | 454,703 |
| 40% | 39.8% | 363,656 | 362,172 |
| 30% | 30.0% | 272,742 | 272,803 |
| 20% | 19.9% | 181,828 | 180,900 |
| 10% | 10.1% | 90,914 | 91,422 |
| Active Idle | 0 | 0 | |
