Dell Inc. PowerEdge M610 SPECpower_ssj2008 = 3,093 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,649 24.2
Calibration 2 3,712 24.4
Calibration 3 3,723 24.4
100% 3,716 24.5
90% 3,339 24.6
80% 2,998 24.4
70% 2,721 24.5
60% 2,484 24.6
50% 2,296 24.6
40% 2,107 24.4
30% 1,932 24.4
20% 1,755 24.4
10% 1,550 24.4
Active Idle 877 24.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 91H648897
Date of Calibration: 22-Sep-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91G643889
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 91G643889
Date of Calibration: 23-Apr-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supplies 2,3
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5mm in front of chassis
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 5.75 10.0 0.991 1,160 0.4%
Calibration 2 204 300.0 5.84 10.0 0.992 1,181 0.4%
Calibration 3 204 300.0 5.85 10.0 0.992 1,184 0.4%
100% 204 300.0 5.85 10.0 0.992 1,182 0.4%
90% 203 300.0 5.25 10.0 0.990 1,058 0.4%
80% 203 300.0 4.71 5.0 0.988 944 0.3%
70% 203 300.0 4.25 5.0 0.986 852 0.3%
60% 205 300.0 3.84 5.0 0.984 773 0.3%
50% 205 300.0 3.53 5.0 0.982 710 0.4%
40% 205 300.0 3.22 5.0 0.979 645 0.4%
30% 205 300.0 2.93 5.0 0.976 585 0.4%
20% 205 300.0 2.63 5.0 0.973 525 0.4%
10% 205 300.0 2.30 5.0 0.968 457 0.5%
Active Idle 206 300.0 1.17 2.0 0.894 215 0.5%

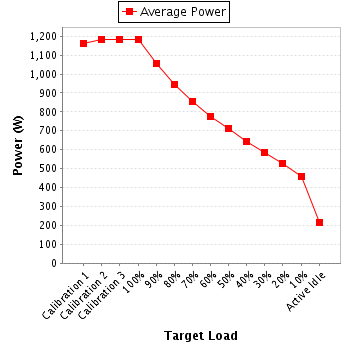

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 12.3 20.0 0.994 2,489 0.4%
Calibration 2 204 300.0 12.5 20.0 0.994 2,531 0.4%
Calibration 3 204 300.0 12.5 20.0 0.994 2,539 0.4%
100% 204 300.0 12.5 20.0 0.994 2,534 0.4%
90% 203 300.0 11.3 20.0 0.993 2,281 0.4%
80% 203 300.0 10.2 20.0 0.991 2,054 0.4%
70% 203 300.0 9.27 10.0 0.990 1,868 0.3%
60% 205 300.0 8.44 10.0 0.989 1,711 0.3%
50% 205 300.0 7.84 10.0 0.988 1,586 0.3%
40% 205 300.0 7.23 10.0 0.987 1,462 0.3%
30% 205 300.0 6.66 10.0 0.986 1,347 0.4%
20% 205 300.0 6.09 10.0 0.985 1,230 0.4%
10% 205 300.0 5.41 10.0 0.983 1,093 0.4%
Active Idle 206 300.0 3.29 5.0 0.978 663 0.4%
Power details for pwr2
