NEC Corporation Express5800/B120b | SPECpower_ssj2008 = 1,555 overall ssj_ops/watt | ||||
Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Multi Node |
Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 8, 2010 |
Hardware Availability: | Apr-2010 | Software Availability: | May-2009 | Publication: | Aug 11, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

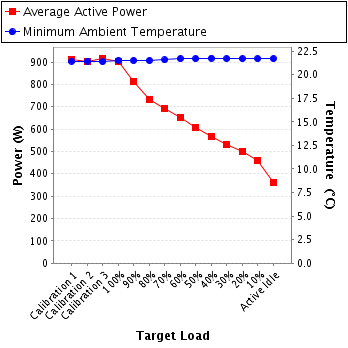

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 911 | 21.4 |
Calibration 2 | 904 | 21.4 |
Calibration 3 | 917 | 21.4 |
100% | 902 | 21.5 |
90% | 814 | 21.5 |
80% | 733 | 21.5 |
70% | 691 | 21.6 |
60% | 650 | 21.7 |
50% | 608 | 21.7 |
40% | 568 | 21.8 |
30% | 533 | 21.7 |
20% | 499 | 21.7 |
10% | 458 | 21.7 |
Active Idle | 360 | 21.7 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H928025 |
Connectivity: | RS-232C |
Input Connection: | Default |
Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
Accredited by: | JQA (Japan Quality Assurance Organization) |
Calibration Label: | 150-92562 |
Date of Calibration: | 8-Sep-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.10-511c8daa |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 202 | 300.0 | 4.58 | 5.0 | 0.988 | 911 | 0.3% |
Calibration 2 | 202 | 300.0 | 4.53 | 5.0 | 0.987 | 904 | 0.3% |
Calibration 3 | 202 | 300.0 | 4.61 | 5.0 | 0.987 | 917 | 0.3% |
100% | 201 | 300.0 | 4.53 | 5.0 | 0.988 | 902 | 0.3% |
90% | 201 | 300.0 | 4.09 | 5.0 | 0.987 | 814 | 0.3% |
80% | 201 | 300.0 | 3.69 | 5.0 | 0.985 | 733 | 0.3% |
70% | 201 | 300.0 | 3.49 | 5.0 | 0.983 | 691 | 0.4% |
60% | 201 | 300.0 | 3.30 | 5.0 | 0.980 | 650 | 0.4% |
50% | 202 | 300.0 | 3.09 | 5.0 | 0.975 | 608 | 0.4% |
40% | 202 | 300.0 | 2.90 | 5.0 | 0.969 | 568 | 0.4% |
30% | 202 | 300.0 | 2.73 | 5.0 | 0.963 | 533 | 0.4% |
20% | 202 | 300.0 | 2.58 | 5.0 | 0.956 | 499 | 0.5% |
10% | 202 | 300.0 | 2.40 | 5.0 | 0.946 | 458 | 0.5% |
Active Idle | 202 | 300.0 | 1.94 | 5.0 | 0.916 | 360 | 0.6% |
