IBM Corporation System x3620 M3 ssj_ops@100% = 910,529
ssj_ops@100% per JVM = 151,755
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: NanKang, Taipei, Taiwan Test Date: May 21, 2010
Hardware Availability: Jun-2010 Software Availability: Jun-2009 Publication: Jul 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     909,645
Calibration 2     913,577
Calibration 3     912,396
ssj_ops@calibrated=912,987
100% 99.7% 912,987 910,529
90% 90.0% 821,688 822,039
80% 79.7% 730,389 728,054
70% 69.7% 639,091 636,681
60% 60.2% 547,792 549,316
50% 50.1% 456,493 457,633
40% 40.0% 365,195 365,436
30% 29.8% 273,896 272,334
20% 20.1% 182,597 183,547
10% 10.1% 91,299 91,968
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: System x3620 M3
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: 6-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 3, 6, 8, 11, 14 and 16 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM P/N:39Y7206
Disk Drive: 1 x 500GB 7200RPM 3.5" SATA (IBM P/N:42C0468)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82575EB Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: HSE111XUS
Management Firmware Version: YUOO67C
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-BEITOU-SIT.001 151,700
WIN-BEITOU-SIT.002 147,457
WIN-BEITOU-SIT.003 152,824
WIN-BEITOU-SIT.004 153,301
WIN-BEITOU-SIT.005 151,750
WIN-BEITOU-SIT.006 153,498
ssj_ops@100% 910,529
ssj_ops@100% per JVM 151,755

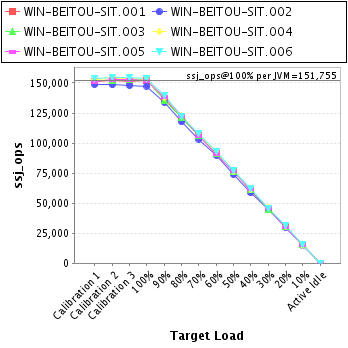

Graph of per-instance results
JVM 'WIN-BEITOU-SIT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,301
Calibration 2     151,907
Calibration 3     151,491
ssj_ops@calibrated=151,699
100% 100.0% 151,699 151,700
90% 90.5% 136,529 137,335
80% 80.0% 121,359 121,414
70% 69.8% 106,189 105,943
60% 60.4% 91,019 91,623
50% 50.5% 75,849 76,556
40% 40.2% 60,680 60,951
30% 29.6% 45,510 44,954
20% 20.2% 30,340 30,711
10% 10.1% 15,170 15,377
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,823
Calibration 2     148,579
Calibration 3     147,947
ssj_ops@calibrated=148,263
100% 99.5% 148,263 147,457
90% 90.3% 133,436 133,842
80% 79.3% 118,610 117,566
70% 69.7% 103,784 103,342
60% 60.6% 88,958 89,864
50% 49.8% 74,131 73,815
40% 39.5% 59,305 58,538
30% 30.1% 44,479 44,571
20% 20.2% 29,653 29,899
10% 10.2% 14,826 15,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,755
Calibration 2     152,223
Calibration 3     152,585
ssj_ops@calibrated=152,404
100% 100.3% 152,404 152,824
90% 88.9% 137,164 135,528
80% 79.6% 121,923 121,309
70% 69.7% 106,683 106,179
60% 60.1% 91,442 91,603
50% 50.3% 76,202 76,728
40% 40.2% 60,962 61,333
30% 29.4% 45,721 44,844
20% 20.3% 30,481 30,982
10% 10.3% 15,240 15,656
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,803
Calibration 2     153,411
Calibration 3     153,387
ssj_ops@calibrated=153,399
100% 99.9% 153,399 153,301
90% 89.7% 138,059 137,662
80% 79.9% 122,719 122,579
70% 69.7% 107,379 106,980
60% 60.2% 92,039 92,307
50% 50.0% 76,700 76,741
40% 39.8% 61,360 61,037
30% 30.3% 46,020 46,426
20% 20.0% 30,680 30,662
10% 9.8% 15,340 15,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,885
Calibration 2     152,639
Calibration 3     152,501
ssj_ops@calibrated=152,570
100% 99.5% 152,570 151,750
90% 90.5% 137,313 138,042
80% 80.4% 122,056 122,712
70% 69.5% 106,799 106,057
60% 59.5% 91,542 90,764
50% 50.1% 76,285 76,470
40% 40.4% 61,028 61,601
30% 29.9% 45,771 45,640
20% 19.7% 30,514 30,111
10% 10.1% 15,257 15,369
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,078
Calibration 2     154,819
Calibration 3     154,484
ssj_ops@calibrated=154,652
100% 99.3% 154,652 153,498
90% 90.3% 139,187 139,631
80% 79.2% 123,721 122,474
70% 70.0% 108,256 108,180
60% 60.2% 92,791 93,155
50% 50.0% 77,326 77,324
40% 40.1% 61,861 61,976
30% 29.7% 46,396 45,899
20% 20.2% 30,930 31,182
10% 9.9% 15,465 15,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
