IBM Corporation System x3620 M3 SPECpower_ssj2008 = 2,916 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: NanKang, Taipei, Taiwan Test Date: May 21, 2010
Hardware Availability: Jun-2010 Software Availability: Jun-2009 Publication: Jul 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 235 22.2
Calibration 2 236 22.2
Calibration 3 236 22.4
100% 236 22.6
90% 219 22.8
80% 202 22.9
70% 185 23.1
60% 169 23.2
50% 154 23.2
40% 141 23.4
30% 129 23.5
20% 118 23.6
10% 105 23.8
Active Idle 64.0 24.0
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 10-04-BAC-377-03
Date of Calibration: 23-Apr-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.18 2.0 0.955 235 0.4%
Calibration 2 208 300.0 1.19 2.0 0.955 236 0.4%
Calibration 3 209 300.0 1.19 2.0 0.955 236 0.4%
100% 209 300.0 1.18 2.0 0.954 236 0.4%
90% 209 300.0 1.10 2.0 0.950 219 0.4%
80% 209 300.0 1.03 2.0 0.944 202 0.5%
70% 208 300.0 0.949 2.0 0.938 185 0.5%
60% 208 300.0 0.871 2.0 0.932 169 0.5%
50% 208 300.0 0.797 2.0 0.926 154 0.6%
40% 208 300.0 0.733 2.0 0.921 141 0.6%
30% 208 300.0 0.675 1.0 0.915 129 0.4%
20% 209 300.0 0.622 1.0 0.906 118 0.4%
10% 209 300.0 0.565 1.0 0.890 105 0.5%
Active Idle 209 300.0 0.370 0.5 0.826 64.0 0.5%

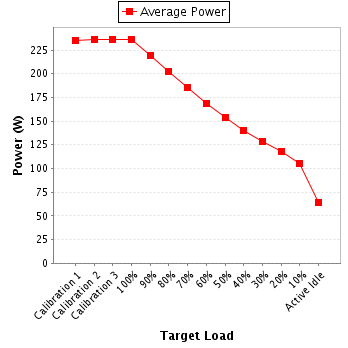

Power details for pwr1
