SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R815 (AMD Opteron 6174, 2.20 GHz) | SPECpower_ssj2008 = 2,357 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jun 8, 2010 |
| Hardware Availability: | Jul-2010 | Software Availability: | Jul-2009 | Publication: | Jun 30, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

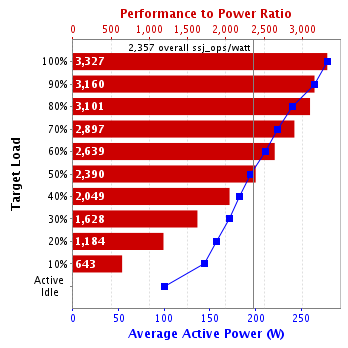

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 926,676 | 279 | 3,327 |
| 90% | 89.8% | 835,862 | 265 | 3,160 |
| 80% | 80.1% | 745,312 | 240 | 3,101 |
| 70% | 69.8% | 649,772 | 224 | 2,897 |
| 60% | 59.9% | 557,269 | 211 | 2,639 |
| 50% | 50.0% | 464,746 | 194 | 2,390 |
| 40% | 40.1% | 373,390 | 182 | 2,049 |
| 30% | 30.0% | 278,929 | 171 | 1,628 |
| 20% | 20.0% | 185,938 | 157 | 1,184 |
| 10% | 10.0% | 92,932 | 144 | 643 |
| Active Idle | 0 | 100 | 0 | |
| ∑ssj_ops / ∑power = | 2,357 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge R815 (AMD Opteron 6174, 2.20 GHz) |
| Form Factor: | 2U |
| CPU Name: | AMD Opteron 6174 |
| CPU Characteristics: | Twelve Core, 2.20 GHz, 12 MB L3 Cache |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 24 cores, 2 chips, 12 cores/chip |
| Hardware Threads: | 24 (1 / core) |
| CPU(s) Orderable: | 2,4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip, 6 MB shared/ 6 cores |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 8 x 2048 MB |
| Memory Details: | 2 GB 2Rx8 PC3-10600E ECC , Slots A1-A4, B1-B4 populated |
| Power Supply Quantity and Rating (W): | 1 x 1100 |
| Power Supply Details: | Dell PN 9PG9X |
| Disk Drive: | 1 x 50GB 2.5" SATA SSD (Dell PN Y949P) |
| Disk Controller: | PERC H200 Internal |
| # and type of Network Interface Cards (NICs) Installed: | 2 x dual-port onboard Gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced Mode in OS (See Notes) |
| Operating System (OS): | Microsoft Windows 2008 Enterprise x64 Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xms1875m -Xmx1875m -Xmn1400m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [3F,FC0,3F000,FC0000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.1.9 |
| Management Firmware Version: | 150 X16 iDRAC |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | Microsoft Hotfix KB974090 |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge 1950 |
| CPU Description: | Intel Xeon 5160 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 2003 Server Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Jrockit(R) 1.6.0_02 build R26.4.0-63 (32-bit) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91JB09484 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 09-2635 |
| Date of Calibration: | 17-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 279 | 24.1 |
| 90% | 265 | 24.1 |
| 80% | 240 | 24.1 |
| 70% | 224 | 24.1 |
| 60% | 211 | 24.2 |
| 50% | 194 | 24.1 |
| 40% | 182 | 24.1 |
| 30% | 171 | 24.1 |
| 20% | 157 | 24.1 |
| 10% | 144 | 24.1 |
| Active Idle | 100 | 24.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 1 wire | 24.1 | 255 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 931,029 | ||
| Calibration 2 | 930,389 | ||
| Calibration 3 | 930,228 | ||
| ssj_ops@calibrated=930,308 | |||
| 100% | 99.6% | 930,308 | 926,676 |
| 90% | 89.8% | 837,278 | 835,862 |
| 80% | 80.1% | 744,247 | 745,312 |
| 70% | 69.8% | 651,216 | 649,772 |
| 60% | 59.9% | 558,185 | 557,269 |
| 50% | 50.0% | 465,154 | 464,746 |
| 40% | 40.1% | 372,123 | 373,390 |
| 30% | 30.0% | 279,093 | 278,929 |
| 20% | 20.0% | 186,062 | 185,938 |
| 10% | 10.0% | 93,031 | 92,932 |
| Active Idle | 0 | 0 | |
