SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R710 (Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,963 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | May 3, 2010 |
| Hardware Availability: | Jul-2010 | Software Availability: | Sep-2009 | Publication: | May 19, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

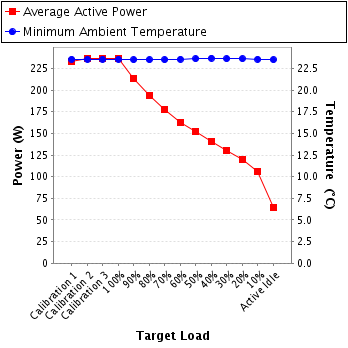

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 233 | 23.6 |
| Calibration 2 | 236 | 23.6 |
| Calibration 3 | 237 | 23.6 |
| 100% | 236 | 23.6 |
| 90% | 213 | 23.5 |
| 80% | 194 | 23.5 |
| 70% | 177 | 23.5 |
| 60% | 162 | 23.6 |
| 50% | 152 | 23.6 |
| 40% | 140 | 23.7 |
| 30% | 130 | 23.6 |
| 20% | 119 | 23.6 |
| 10% | 106 | 23.6 |
| Active Idle | 64.6 | 23.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Davis Calibration |
| Calibration Label: | 91H648897 |
| Date of Calibration: | 22-Sep-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 1.17 | 2.0 | 0.964 | 233 | 0.4% |
| Calibration 2 | 206 | 300.0 | 1.19 | 2.0 | 0.964 | 236 | 0.4% |
| Calibration 3 | 206 | 300.0 | 1.19 | 2.0 | 0.965 | 237 | 0.4% |
| 100% | 206 | 300.0 | 1.19 | 2.0 | 0.964 | 236 | 0.4% |
| 90% | 207 | 300.0 | 1.08 | 2.0 | 0.960 | 213 | 0.4% |
| 80% | 207 | 300.0 | 0.984 | 2.0 | 0.953 | 194 | 0.5% |
| 70% | 207 | 300.0 | 0.908 | 1.0 | 0.945 | 177 | 0.3% |
| 60% | 207 | 300.0 | 0.839 | 1.0 | 0.936 | 162 | 0.4% |
| 50% | 207 | 300.0 | 0.790 | 1.0 | 0.929 | 152 | 0.4% |
| 40% | 207 | 300.0 | 0.736 | 1.0 | 0.920 | 140 | 0.4% |
| 30% | 207 | 300.0 | 0.689 | 1.0 | 0.910 | 130 | 0.4% |
| 20% | 208 | 300.0 | 0.641 | 1.0 | 0.898 | 119 | 0.4% |
| 10% | 208 | 300.0 | 0.582 | 1.0 | 0.879 | 106 | 0.5% |
| Active Idle | 208 | 300.0 | 0.397 | 0.5 | 0.781 | 64.6 | 0.5% |
