Acer Incorporated Gateway GT110 F1 SPECpower_ssj2008 = 1,263 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Apr 9, 2010
Hardware Availability: Dec-2009 Software Availability: Jul-2009 Publication: May 19, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 95.6 25.6
Calibration 2 97.1 25.7
Calibration 3 93.9 25.7
100% 94.5 25.8
90% 91.4 25.8
80% 89.7 25.9
70% 83.6 25.9
60% 79.3 26.1
50% 74.0 26.0
40% 68.5 25.9
30% 63.6 25.8
20% 59.2 25.7
10% 53.5 25.6
Active Idle 47.7 25.6

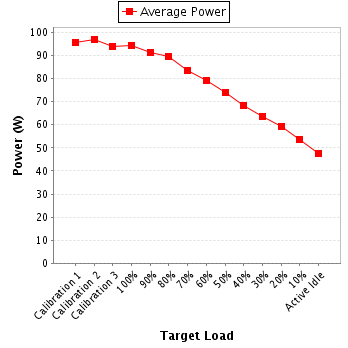

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232-C
Input Connection: Default
Calibration Institute: Tai Yi Electronics & Surveillance Co., Ltd.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T9802230701
Date of Calibration: 30-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: Temperature@lert
Driver Version: 2.4.16.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 110 150.0 0.885 2.0 0.979 95.6 0.5%
Calibration 2 110 150.0 0.899 2.0 0.979 97.1 0.5%
Calibration 3 110 150.0 0.869 2.0 0.980 93.9 0.5%
100% 110 150.0 0.874 2.0 0.980 94.5 0.5%
90% 110 150.0 0.846 2.0 0.979 91.4 0.5%
80% 110 150.0 0.832 2.0 0.977 89.7 0.5%
70% 110 150.0 0.778 2.0 0.975 83.6 0.5%
60% 110 150.0 0.740 2.0 0.972 79.3 0.5%
50% 110 150.0 0.693 2.0 0.968 74.0 0.6%
40% 110 150.0 0.643 2.0 0.965 68.5 0.6%
30% 110 150.0 0.599 2.0 0.962 63.6 0.6%
20% 110 150.0 0.560 2.0 0.959 59.2 0.7%
10% 110 150.0 0.505 2.0 0.959 53.5 0.7%
Active Idle 110 150.0 0.447 2.0 0.967 47.7 0.8%
Power details for pwr1
