Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) ssj_ops@100% = 853,665
ssj_ops@100% per JVM = 142,277
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 15, 2010
Hardware Availability: Jun-2010 Software Availability: Mar-2010 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     855,914
Calibration 2     860,987
Calibration 3     857,282
ssj_ops@calibrated=859,135
100% 99.4% 859,135 853,665
90% 89.8% 773,221 771,803
80% 79.8% 687,308 685,243
70% 69.8% 601,394 599,884
60% 59.6% 515,481 511,748
50% 50.3% 429,567 432,173
40% 39.9% 343,654 343,080
30% 29.8% 257,740 255,915
20% 20.1% 171,827 172,568
10% 9.8% 85,913 84,248
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1 and 4 populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 034 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
none
JVM Instance Summary
JVM Instance ssj_ops@100%
Node1.001 151,057
Node1.002 136,471
Node1.003 140,493
Node1.004 151,780
Node1.005 135,411
Node1.006 138,452
ssj_ops@100% 853,665
ssj_ops@100% per JVM 142,277

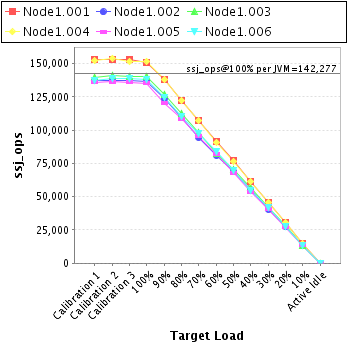

Graph of per-instance results
JVM 'Node1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,812
Calibration 2     153,282
Calibration 3     153,015
ssj_ops@calibrated=153,149
100% 98.6% 153,149 151,057
90% 90.1% 137,834 137,937
80% 79.7% 122,519 122,074
70% 69.9% 107,204 107,015
60% 60.0% 91,889 91,835
50% 50.4% 76,574 77,222
40% 40.0% 61,259 61,291
30% 29.8% 45,945 45,696
20% 20.2% 30,630 30,992
10% 9.8% 15,315 14,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,400
Calibration 2     137,199
Calibration 3     137,177
ssj_ops@calibrated=137,188
100% 99.5% 137,188 136,471
90% 90.2% 123,469 123,757
80% 79.9% 109,750 109,671
70% 68.8% 96,032 94,374
60% 59.0% 82,313 81,001
50% 50.5% 68,594 69,225
40% 40.4% 54,875 55,375
30% 29.5% 41,156 40,403
20% 20.3% 27,438 27,851
10% 9.8% 13,719 13,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,934
Calibration 2     140,832
Calibration 3     140,575
ssj_ops@calibrated=140,704
100% 99.9% 140,704 140,493
90% 90.3% 126,633 127,012
80% 79.8% 112,563 112,219
70% 69.9% 98,493 98,367
60% 58.6% 84,422 82,428
50% 50.3% 70,352 70,707
40% 40.3% 56,281 56,635
30% 29.8% 42,211 41,901
20% 19.9% 28,141 28,064
10% 9.6% 14,070 13,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,250
Calibration 2     154,121
Calibration 3     151,835
ssj_ops@calibrated=152,978
100% 99.2% 152,978 151,780
90% 90.3% 137,680 138,115
80% 79.9% 122,382 122,222
70% 70.1% 107,084 107,182
60% 59.4% 91,787 90,885
50% 50.2% 76,489 76,817
40% 40.1% 61,191 61,363
30% 29.9% 45,893 45,788
20% 20.0% 30,596 30,631
10% 9.7% 15,298 14,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,043
Calibration 2     136,556
Calibration 3     135,851
ssj_ops@calibrated=136,203
100% 99.4% 136,203 135,411
90% 88.3% 122,583 120,327
80% 79.6% 108,963 108,480
70% 70.0% 95,342 95,329
60% 60.2% 81,722 81,953
50% 50.1% 68,102 68,180
40% 39.5% 54,481 53,787
30% 29.7% 40,861 40,431
20% 20.0% 27,241 27,173
10% 10.0% 13,620 13,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,475
Calibration 2     138,998
Calibration 3     138,829
ssj_ops@calibrated=138,913
100% 99.7% 138,913 138,452
90% 89.7% 125,022 124,655
80% 79.6% 111,131 110,577
70% 70.3% 97,239 97,617
60% 60.2% 83,348 83,647
50% 50.4% 69,457 70,021
40% 39.3% 55,565 54,629
30% 30.0% 41,674 41,696
20% 20.1% 27,783 27,857
10% 9.9% 13,891 13,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
