NEC Corporation Express5800/GT110b-S | ssj_ops@100% = 130,559 ssj_ops@100% per JVM = 65,280 |
||||
Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Feb 26, 2010 |
Hardware Availability: | Apr-2010 | Software Availability: | May-2009 | Publication: | May 13, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 128,691 | ||
Calibration 2 | 131,102 | ||
Calibration 3 | 131,385 | ||
ssj_ops@calibrated=131,244 | |||
100% | 99.5% | 131,244 | 130,559 |
90% | 89.8% | 118,119 | 117,840 |
80% | 80.2% | 104,995 | 105,267 |
70% | 71.3% | 91,871 | 93,587 |
60% | 60.2% | 78,746 | 78,965 |
50% | 50.2% | 65,622 | 65,899 |
40% | 39.8% | 52,497 | 52,232 |
30% | 30.6% | 39,373 | 40,193 |
20% | 20.0% | 26,249 | 26,237 |
10% | 10.1% | 13,124 | 13,232 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | Express5800/GT110b-S (Intel Core i3-540, 3.06 GHz) |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | NEC Corporation |
Model: | Express5800/GT110b-S |
Form Factor: | Tower |
CPU Name: | Intel Core i3-540 |
CPU Characteristics: | Dual-Core, 3.06 GHz, 4 MB L3 Cache |
CPU Frequency (MHz): | 3067 |
CPU(s) Enabled: | 2 cores, 1 chip, 2 cores/chip |
Hardware Threads: | 4 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 4 |
# and size of DIMM: | 2 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC3-10600E ECC CL9; slots DIMM1 and DIMM2 populated |
Power Supply Quantity and Rating (W): | 1 x 250 |
Power Supply Details: | TIGER POWER TFX-2582 |
Disk Drive: | 1 x 50GB SSD SATA, NEC P/N:N8150-702 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Integrated Intel 82574L Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power saver |
Operating System (OS): | Microsoft Windows Server 2008 Standard x64 Edition |
OS Version: | SP2 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
JVM Command-line Options: | -Xms1600m -Xmx1600m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXallocPrefetch=false -XXallocRedoPrefetch=false |
JVM Affinity: | start /affinity [3,C] |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 1600 |
JVM Maximum Heap (MB): | 1600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 1.0.3107 |
Management Firmware Version: | None |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |

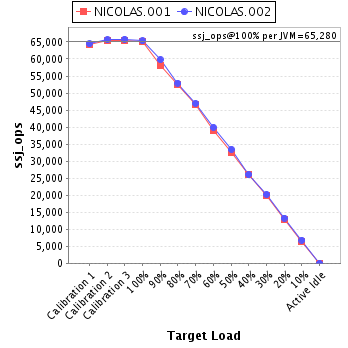

JVM Instance | ssj_ops@100% |
---|---|
NICOLAS.001 | 65,235 |
NICOLAS.002 | 65,324 |
ssj_ops@100% | 130,559 |
ssj_ops@100% per JVM | 65,280 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 64,242 | ||
Calibration 2 | 65,436 | ||
Calibration 3 | 65,567 | ||
ssj_ops@calibrated=65,501 | |||
100% | 99.6% | 65,501 | 65,235 |
90% | 88.6% | 58,951 | 58,036 |
80% | 80.0% | 52,401 | 52,376 |
70% | 71.2% | 45,851 | 46,609 |
60% | 59.6% | 39,301 | 39,066 |
50% | 49.5% | 32,751 | 32,408 |
40% | 40.0% | 26,201 | 26,171 |
30% | 30.5% | 19,650 | 19,995 |
20% | 19.8% | 13,100 | 12,954 |
10% | 9.8% | 6,550 | 6,450 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 64,449 | ||
Calibration 2 | 65,666 | ||
Calibration 3 | 65,818 | ||
ssj_ops@calibrated=65,742 | |||
100% | 99.4% | 65,742 | 65,324 |
90% | 91.0% | 59,168 | 59,803 |
80% | 80.5% | 52,594 | 52,891 |
70% | 71.5% | 46,020 | 46,978 |
60% | 60.7% | 39,445 | 39,899 |
50% | 50.9% | 32,871 | 33,491 |
40% | 39.6% | 26,297 | 26,060 |
30% | 30.7% | 19,723 | 20,198 |
20% | 20.2% | 13,148 | 13,283 |
10% | 10.3% | 6,574 | 6,783 |
Active Idle | 0 | 0 |
