NEC Corporation Express5800/GT110b ssj_ops@100% = 217,709
ssj_ops@100% per JVM = 108,854
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Feb 15, 2010
Hardware Availability: Apr-2010 Software Availability: May-2009 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,318
Calibration 2     219,342
Calibration 3     218,168
ssj_ops@calibrated=218,755
100% 99.5% 218,755 217,709
90% 89.2% 196,880 195,191
80% 80.3% 175,004 175,660
70% 70.4% 153,129 154,040
60% 60.3% 131,253 131,978
50% 50.1% 109,378 109,591
40% 40.3% 87,502 88,212
30% 29.9% 65,627 65,303
20% 19.8% 43,751 43,251
10% 10.2% 21,876 22,249
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/GT110b (Intel Xeon X3430, 2.40 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/GT110b
Form Factor: Tower
CPU Name: Intel Xeon X3430
CPU Characteristics: Quad-Core, 2.40 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots DIMM1 and DIMM2 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: DELTA DPS-400AB-8 A
Disk Drive: 1 x 50GB SSD SATA, NEC P/N:N8150-705
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82574L Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 Standard x64 Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64)
JVM Command-line Options: -Xms1625m -Xmx1625m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXallocPrefetch=false -XXallocRedoPrefetch=false
JVM Affinity: start /affinity [3,C]
JVM Instances: 2
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: 1.0.3107
Management Firmware Version: None
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
NICOLAS.001 109,658
NICOLAS.002 108,051
ssj_ops@100% 217,709
ssj_ops@100% per JVM 108,854

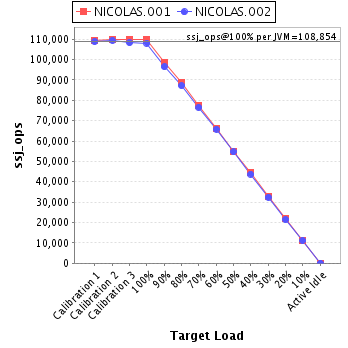

Graph of per-instance results
JVM 'NICOLAS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,527
Calibration 2     109,927
Calibration 3     109,976
ssj_ops@calibrated=109,951
100% 99.7% 109,951 109,658
90% 89.8% 98,956 98,749
80% 80.5% 87,961 88,527
70% 70.5% 76,966 77,559
60% 60.2% 65,971 66,144
50% 50.0% 54,976 54,971
40% 40.5% 43,981 44,488
30% 30.0% 32,985 32,938
20% 19.8% 21,990 21,812
10% 10.1% 10,995 11,071
Active Idle   0 0
Graph of results
JVM 'NICOLAS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,791
Calibration 2     109,416
Calibration 3     108,192
ssj_ops@calibrated=108,804
100% 99.3% 108,804 108,051
90% 88.6% 97,924 96,442
80% 80.1% 87,043 87,133
70% 70.3% 76,163 76,481
60% 60.5% 65,282 65,834
50% 50.2% 54,402 54,620
40% 40.2% 43,522 43,724
30% 29.7% 32,641 32,365
20% 19.7% 21,761 21,439
10% 10.3% 10,880 11,178
Active Idle   0 0
Graph of results
