Hewlett-Packard Company ProLiant SL2X170z G6 ssj_ops@100% = 850,870
ssj_ops@100% per JVM = 141,812
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 6, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     851,521
Calibration 2     853,535
Calibration 3     856,325
ssj_ops@calibrated=854,930
100% 99.5% 854,930 850,870
90% 90.1% 769,437 770,255
80% 80.0% 683,944 684,339
70% 70.1% 598,451 599,072
60% 60.1% 512,958 513,775
50% 50.1% 427,465 428,138
40% 39.9% 341,972 341,088
30% 30.0% 256,479 256,729
20% 19.9% 170,986 170,513
10% 9.9% 85,493 85,060
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant SL2x170z G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL2X170z G6
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per chip
Tertiary Cache: 8 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB PC3LV-10600E; slots 1 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #586585-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1900
JVM Maximum Heap (MB): 1900
JVM Address Bits: 64
Boot Firmware Version: O34 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A5G0O7ON0UV.001 150,850
WIN-A5G0O7ON0UV.002 136,246
WIN-A5G0O7ON0UV.003 137,995
WIN-A5G0O7ON0UV.004 151,923
WIN-A5G0O7ON0UV.005 136,149
WIN-A5G0O7ON0UV.006 137,707
ssj_ops@100% 850,870
ssj_ops@100% per JVM 141,812

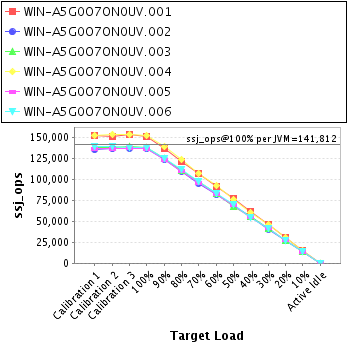

Graph of per-instance results
JVM 'WIN-A5G0O7ON0UV.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,187
Calibration 2     151,314
Calibration 3     153,105
ssj_ops@calibrated=152,210
100% 99.1% 152,210 150,850
90% 89.7% 136,989 136,542
80% 79.4% 121,768 120,898
70% 70.0% 106,547 106,566
60% 60.0% 91,326 91,391
50% 50.4% 76,105 76,698
40% 40.2% 60,884 61,144
30% 30.3% 45,663 46,183
20% 20.2% 30,442 30,778
10% 10.2% 15,221 15,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A5G0O7ON0UV.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,027
Calibration 2     136,118
Calibration 3     136,668
ssj_ops@calibrated=136,393
100% 99.9% 136,393 136,246
90% 90.3% 122,754 123,226
80% 79.9% 109,114 108,968
70% 69.7% 95,475 95,125
60% 59.8% 81,836 81,496
50% 50.5% 68,197 68,881
40% 40.5% 54,557 55,195
30% 29.9% 40,918 40,737
20% 20.0% 27,279 27,230
10% 10.1% 13,639 13,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A5G0O7ON0UV.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,557
Calibration 2     137,571
Calibration 3     138,365
ssj_ops@calibrated=137,968
100% 100.0% 137,968 137,995
90% 89.9% 124,171 124,009
80% 79.8% 110,374 110,128
70% 70.7% 96,578 97,497
60% 60.2% 82,781 83,089
50% 49.0% 68,984 67,581
40% 40.4% 55,187 55,729
30% 29.7% 41,390 41,036
20% 19.9% 27,594 27,498
10% 9.7% 13,797 13,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A5G0O7ON0UV.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,276
Calibration 2     153,464
Calibration 3     153,205
ssj_ops@calibrated=153,335
100% 99.1% 153,335 151,923
90% 90.2% 138,001 138,337
80% 80.5% 122,668 123,480
70% 69.9% 107,334 107,165
60% 60.1% 92,001 92,156
50% 49.7% 76,667 76,158
40% 39.2% 61,334 60,107
30% 29.9% 46,000 45,825
20% 19.8% 30,667 30,306
10% 9.9% 15,333 15,138
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A5G0O7ON0UV.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,082
Calibration 2     136,485
Calibration 3     136,816
ssj_ops@calibrated=136,651
100% 99.6% 136,651 136,149
90% 90.2% 122,986 123,225
80% 79.9% 109,321 109,136
70% 70.3% 95,656 96,010
60% 60.2% 81,990 82,228
50% 50.5% 68,325 69,067
40% 39.9% 54,660 54,587
30% 30.3% 40,995 41,365
20% 19.9% 27,330 27,232
10% 9.9% 13,665 13,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-A5G0O7ON0UV.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,392
Calibration 2     138,583
Calibration 3     138,166
ssj_ops@calibrated=138,374
100% 99.5% 138,374 137,707
90% 90.3% 124,537 124,914
80% 80.7% 110,699 111,728
70% 69.9% 96,862 96,709
60% 60.3% 83,025 83,415
50% 50.4% 69,187 69,751
40% 39.3% 55,350 54,326
30% 30.1% 41,512 41,583
20% 19.9% 27,675 27,470
10% 9.9% 13,837 13,645
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
