Hewlett-Packard Company ProLiant SL2X170z G6 ssj_ops@100% = 855,877
ssj_ops@100% per JVM = 142,646
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 6, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     855,145
Calibration 2     860,195
Calibration 3     856,948
ssj_ops@calibrated=858,571
100% 99.7% 858,571 855,877
90% 90.1% 772,714 773,650
80% 80.1% 686,857 687,987
70% 69.9% 601,000 600,135
60% 60.4% 515,143 518,290
50% 50.2% 429,286 431,003
40% 39.9% 343,429 342,670
30% 30.0% 257,571 257,585
20% 20.0% 171,714 171,453
10% 9.9% 85,857 85,319
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant SL2x170z G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL2X170z G6
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per chip
Tertiary Cache: 8 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB PC3LV-10600E; slots 1 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #586585-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1900
JVM Maximum Heap (MB): 1900
JVM Address Bits: 64
Boot Firmware Version: O34 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-53OET3NSKR9.001 153,277
WIN-53OET3NSKR9.002 136,987
WIN-53OET3NSKR9.003 138,610
WIN-53OET3NSKR9.004 153,098
WIN-53OET3NSKR9.005 136,090
WIN-53OET3NSKR9.006 137,815
ssj_ops@100% 855,877
ssj_ops@100% per JVM 142,646

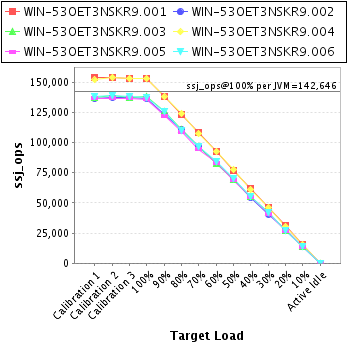

Graph of per-instance results
JVM 'WIN-53OET3NSKR9.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,209
Calibration 2     154,017
Calibration 3     153,407
ssj_ops@calibrated=153,712
100% 99.7% 153,712 153,277
90% 90.1% 138,341 138,430
80% 80.2% 122,970 123,252
70% 70.4% 107,598 108,191
60% 60.3% 92,227 92,722
50% 49.8% 76,856 76,542
40% 40.1% 61,485 61,614
30% 29.9% 46,114 46,013
20% 20.3% 30,742 31,254
10% 10.0% 15,371 15,416
Active Idle   0 0
Graph of results
JVM 'WIN-53OET3NSKR9.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,469
Calibration 2     137,553
Calibration 3     137,093
ssj_ops@calibrated=137,323
100% 99.8% 137,323 136,987
90% 90.1% 123,591 123,727
80% 80.8% 109,858 110,931
70% 70.3% 96,126 96,523
60% 60.4% 82,394 82,907
50% 50.4% 68,662 69,266
40% 39.6% 54,929 54,363
30% 29.7% 41,197 40,806
20% 20.3% 27,465 27,828
10% 10.1% 13,732 13,836
Active Idle   0 0
Graph of results
JVM 'WIN-53OET3NSKR9.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,396
Calibration 2     138,929
Calibration 3     137,837
ssj_ops@calibrated=138,383
100% 100.2% 138,383 138,610
90% 90.9% 124,544 125,841
80% 79.9% 110,706 110,613
70% 70.1% 96,868 96,950
60% 59.7% 83,030 82,565
50% 50.0% 69,191 69,201
40% 40.1% 55,353 55,503
30% 30.1% 41,515 41,696
20% 19.9% 27,677 27,482
10% 9.8% 13,838 13,524
Active Idle   0 0
Graph of results
JVM 'WIN-53OET3NSKR9.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,990
Calibration 2     154,276
Calibration 3     153,381
ssj_ops@calibrated=153,828
100% 99.5% 153,828 153,098
90% 89.7% 138,446 137,969
80% 80.6% 123,063 123,932
70% 69.8% 107,680 107,419
60% 60.3% 92,297 92,806
50% 50.3% 76,914 77,383
40% 39.6% 61,531 60,893
30% 30.0% 46,149 46,078
20% 19.6% 30,766 30,193
10% 10.0% 15,383 15,320
Active Idle   0 0
Graph of results
JVM 'WIN-53OET3NSKR9.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,841
Calibration 2     136,726
Calibration 3     136,776
ssj_ops@calibrated=136,751
100% 99.5% 136,751 136,090
90% 89.3% 123,076 122,129
80% 79.8% 109,401 109,083
70% 69.1% 95,726 94,475
60% 60.8% 82,051 83,167
50% 50.2% 68,376 68,677
40% 40.2% 54,701 55,023
30% 30.1% 41,025 41,144
20% 19.9% 27,350 27,161
10% 9.9% 13,675 13,495
Active Idle   0 0
Graph of results
JVM 'WIN-53OET3NSKR9.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,239
Calibration 2     138,695
Calibration 3     138,454
ssj_ops@calibrated=138,574
100% 99.5% 138,574 137,815
90% 90.6% 124,717 125,554
80% 79.5% 110,859 110,175
70% 69.7% 97,002 96,576
60% 60.7% 83,144 84,123
50% 50.5% 69,287 69,933
40% 39.9% 55,430 55,274
30% 30.2% 41,572 41,848
20% 19.9% 27,715 27,534
10% 9.9% 13,857 13,728
Active Idle   0 0
Graph of results
