Hewlett-Packard Company ProLiant SL2X170z G6 | ssj_ops@100% = 852,750 ssj_ops@100% per JVM = 142,125 |
||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Apr 6, 2010 |
Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Apr 21, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 852,920 | ||
Calibration 2 | 855,995 | ||
Calibration 3 | 856,000 | ||
ssj_ops@calibrated=855,998 | |||
100% | 99.6% | 855,998 | 852,750 |
90% | 90.4% | 770,398 | 773,572 |
80% | 79.9% | 684,798 | 683,962 |
70% | 70.0% | 599,198 | 599,036 |
60% | 60.1% | 513,599 | 514,635 |
50% | 50.1% | 427,999 | 428,431 |
40% | 40.0% | 342,399 | 342,073 |
30% | 30.0% | 256,799 | 256,743 |
20% | 19.9% | 171,200 | 169,943 |
10% | 10.1% | 85,600 | 86,205 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | ProLiant SL2x170z G6 |
# of Identical Nodes: | 4 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Hewlett-Packard Company |
Model: | ProLiant SL2X170z G6 |
Form Factor: | 1U |
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Six-Core, 2.93 GHz, 12 MB L3 cache |
CPU Frequency (MHz): | 2933 |
CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
Hardware Threads: | 24 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 MB I+D on chip per chip |
Tertiary Cache: | 8 MB I+D off chip per chip |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 4 x 4096 MB |
Memory Details: | 4GB PC3LV-10600E; slots 1 and 4 are populated on each processor |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #586585-B21 |
Disk Controller: | Integrated SATA |
# and type of Network Interface Cards (NICs) Installed: | 1 x NC382i Dual Port Multifunction Gigabit Server Adapters |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power Saver in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000] |
JVM Instances: | 6 |
JVM Initial Heap (MB): | 1900 |
JVM Maximum Heap (MB): | 1900 |
JVM Address Bits: | 64 |
Boot Firmware Version: | O34 04/02/2010 |
Management Firmware Version: | 4.20 1/13/10 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |

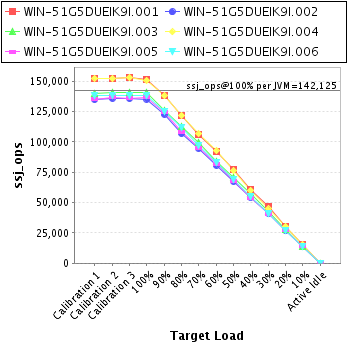

JVM Instance | ssj_ops@100% |
---|---|
WIN-51G5DUEIK9I.001 | 151,501 |
WIN-51G5DUEIK9I.002 | 135,212 |
WIN-51G5DUEIK9I.003 | 140,295 |
WIN-51G5DUEIK9I.004 | 150,727 |
WIN-51G5DUEIK9I.005 | 136,616 |
WIN-51G5DUEIK9I.006 | 138,399 |
ssj_ops@100% | 852,750 |
ssj_ops@100% per JVM | 142,125 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 152,508 | ||
Calibration 2 | 152,247 | ||
Calibration 3 | 153,251 | ||
ssj_ops@calibrated=152,749 | |||
100% | 99.2% | 152,749 | 151,501 |
90% | 90.2% | 137,474 | 137,806 |
80% | 79.6% | 122,199 | 121,621 |
70% | 69.5% | 106,924 | 106,131 |
60% | 60.4% | 91,649 | 92,267 |
50% | 50.4% | 76,374 | 77,040 |
40% | 39.9% | 61,100 | 60,995 |
30% | 30.4% | 45,825 | 46,487 |
20% | 19.8% | 30,550 | 30,230 |
10% | 9.9% | 15,275 | 15,098 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 134,899 | ||
Calibration 2 | 135,934 | ||
Calibration 3 | 135,821 | ||
ssj_ops@calibrated=135,877 | |||
100% | 99.5% | 135,877 | 135,212 |
90% | 90.4% | 122,290 | 122,858 |
80% | 78.7% | 108,702 | 106,918 |
70% | 69.7% | 95,114 | 94,691 |
60% | 59.5% | 81,526 | 80,780 |
50% | 49.7% | 67,939 | 67,529 |
40% | 40.2% | 54,351 | 54,573 |
30% | 30.3% | 40,763 | 41,108 |
20% | 19.9% | 27,175 | 27,033 |
10% | 9.9% | 13,588 | 13,458 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 139,943 | ||
Calibration 2 | 140,720 | ||
Calibration 3 | 140,350 | ||
ssj_ops@calibrated=140,535 | |||
100% | 99.8% | 140,535 | 140,295 |
90% | 89.6% | 126,481 | 125,893 |
80% | 80.4% | 112,428 | 113,011 |
70% | 70.6% | 98,374 | 99,266 |
60% | 59.8% | 84,321 | 83,973 |
50% | 50.2% | 70,267 | 70,479 |
40% | 40.9% | 56,214 | 57,499 |
30% | 30.6% | 42,160 | 42,969 |
20% | 20.0% | 28,107 | 28,108 |
10% | 10.0% | 14,053 | 14,075 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 152,405 | ||
Calibration 2 | 152,063 | ||
Calibration 3 | 152,765 | ||
ssj_ops@calibrated=152,414 | |||
100% | 98.9% | 152,414 | 150,727 |
90% | 90.5% | 137,173 | 137,978 |
80% | 80.0% | 121,931 | 121,925 |
70% | 70.0% | 106,690 | 106,690 |
60% | 60.8% | 91,448 | 92,681 |
50% | 49.9% | 76,207 | 76,095 |
40% | 39.5% | 60,966 | 60,271 |
30% | 29.3% | 45,724 | 44,703 |
20% | 20.0% | 30,483 | 30,425 |
10% | 10.1% | 15,241 | 15,375 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 135,028 | ||
Calibration 2 | 136,579 | ||
Calibration 3 | 135,818 | ||
ssj_ops@calibrated=136,198 | |||
100% | 100.3% | 136,198 | 136,616 |
90% | 91.2% | 122,579 | 124,230 |
80% | 79.6% | 108,959 | 108,444 |
70% | 69.8% | 95,339 | 95,038 |
60% | 60.1% | 81,719 | 81,856 |
50% | 50.0% | 68,099 | 68,075 |
40% | 39.5% | 54,479 | 53,844 |
30% | 29.9% | 40,860 | 40,723 |
20% | 20.0% | 27,240 | 27,218 |
10% | 10.3% | 13,620 | 14,087 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 138,138 | ||
Calibration 2 | 138,452 | ||
Calibration 3 | 137,995 | ||
ssj_ops@calibrated=138,224 | |||
100% | 100.1% | 138,224 | 138,399 |
90% | 90.3% | 124,402 | 124,808 |
80% | 81.1% | 110,579 | 112,043 |
70% | 70.3% | 96,757 | 97,220 |
60% | 60.1% | 82,934 | 83,080 |
50% | 50.1% | 69,112 | 69,214 |
40% | 39.7% | 55,290 | 54,891 |
30% | 29.5% | 41,467 | 40,754 |
20% | 19.5% | 27,645 | 26,930 |
10% | 10.2% | 13,822 | 14,112 |
Active Idle | 0 | 0 |
