Hewlett-Packard Company ProLiant SL2X170z G6 | SPECpower_ssj2008 = 3,106 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Apr 6, 2010 |
Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Apr 21, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

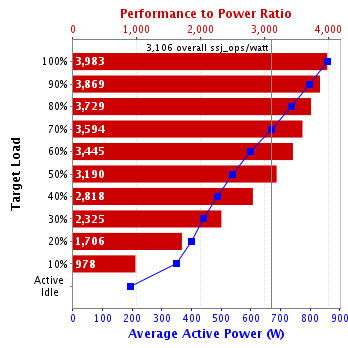

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.6% | 3,417,531 | 858 | 3,983 |
90% | 90.0% | 3,089,214 | 798 | 3,869 |
80% | 80.0% | 2,745,590 | 736 | 3,729 |
70% | 70.0% | 2,403,210 | 669 | 3,594 |
60% | 60.2% | 2,065,033 | 599 | 3,445 |
50% | 50.0% | 1,716,434 | 538 | 3,190 |
40% | 40.0% | 1,371,435 | 487 | 2,818 |
30% | 29.9% | 1,027,604 | 442 | 2,325 |
20% | 19.9% | 683,596 | 401 | 1,706 |
10% | 10.0% | 342,961 | 351 | 978 |
Active Idle | 0 | 194 | 0 | |
∑ssj_ops / ∑power = | 3,106 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
4 | 8 | 48 | 96 | 64.0 | 4 | 24 |
Set Identifier: | sut |
Set Description: | ProLiant SL2x170z G6 |
# of Identical Nodes: | 4 |
Comment: | None |
Hardware per Node | |
---|---|
Hardware Vendor: | Hewlett-Packard Company |
Model: | ProLiant SL2X170z G6 |
Form Factor: | 1U |
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Six-Core, 2.93 GHz, 12 MB L3 cache |
CPU Frequency (MHz): | 2933 |
CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
Hardware Threads: | 24 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 MB I+D on chip per chip |
Tertiary Cache: | 8 MB I+D off chip per chip |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 4 x 4096 MB |
Memory Details: | 4GB PC3LV-10600E; slots 1 and 4 are populated on each processor |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #586585-B21 |
Disk Controller: | Integrated SATA |
# and type of Network Interface Cards (NICs) Installed: | 1 x NC382i Dual Port Multifunction Gigabit Server Adapters |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software per Node | |
---|---|
Power Management: | Power Saver in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000] |
JVM Instances: | 6 |
JVM Initial Heap (MB): | 1900 |
JVM Maximum Heap (MB): | 1900 |
JVM Address Bits: | 64 |
Boot Firmware Version: | O34 04/02/2010 |
Management Firmware Version: | 4.20 1/13/10 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Hewlett-Packard Company |
Model: | ProLiant DL360 G5 |
CPU Description: | Intel Xeon E5440 |
Memory amount (GB): | 2 |
Software | |
---|---|
Operating System (OS): | Windows 2003 R2 Enterprise Edition |
JVM Vendor: | Oracle Corporation |
JVM Version: | BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode) |
CCS Version: | 1.2.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91GB47167 |
Connectivity: | GPIB |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | Yokogawa Electric International Pte. Ltd. |
Calibration Label: | 07-5436 |
Date of Calibration: | 21-Jan-2010 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.10-511c8daa |
Setup Description: | SUT Power Supplies |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 4.50.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 25 mm in front of SUT main air intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 858 | 21.9 |
90% | 798 | 22.1 |
80% | 736 | 21.9 |
70% | 669 | 21.9 |
60% | 599 | 22.1 |
50% | 538 | 22.0 |
40% | 487 | 22.1 |
30% | 442 | 22.1 |
20% | 401 | 22.1 |
10% | 351 | 22.0 |
Active Idle | 194 | 22.0 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 21.9 | 132 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 3,418,867 | ||
Calibration 2 | 3,430,177 | ||
Calibration 3 | 3,432,622 | ||
ssj_ops@calibrated=3,431,400 | |||
100% | 99.6% | 3,431,400 | 3,417,531 |
90% | 90.0% | 3,088,260 | 3,089,214 |
80% | 80.0% | 2,745,120 | 2,745,590 |
70% | 70.0% | 2,401,980 | 2,403,210 |
60% | 60.2% | 2,058,840 | 2,065,033 |
50% | 50.0% | 1,715,700 | 1,716,434 |
40% | 40.0% | 1,372,560 | 1,371,435 |
30% | 29.9% | 1,029,420 | 1,027,604 |
20% | 19.9% | 686,280 | 683,596 |
10% | 10.0% | 343,140 | 342,961 |
Active Idle | 0 | 0 |
