Fujitsu PRIMERGY RX300 S6 (Intel Xeon X5670) SPECpower_ssj2008 = 2,822 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 11, 2010
Hardware Availability: Apr-2010 Software Availability: Nov-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 245 22.2
Calibration 2 246 22.2
Calibration 3 246 22.2
100% 245 22.2
90% 224 22.2
80% 203 22.2
70% 186 22.2
60% 172 22.2
50% 159 22.2
40% 148 22.2
30% 137 22.2
20% 127 22.2
10% 115 22.2
Active Idle 77.9 22.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09075306
Date of Calibration: 06-Jul-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.12 2.5 0.953 245 0.1%
Calibration 2 230 250.0 1.12 2.5 0.953 246 0.1%
Calibration 3 230 250.0 1.12 2.5 0.953 246 0.1%
100% 230 250.0 1.12 2.5 0.953 245 0.1%
90% 229 250.0 1.03 1.2 0.947 224 0.1%
80% 229 250.0 0.944 1.2 0.940 203 0.1%
70% 229 250.0 0.870 1.2 0.933 186 0.1%
60% 229 250.0 0.809 1.2 0.926 172 0.1%
50% 229 250.0 0.755 1.2 0.918 159 0.1%
40% 230 250.0 0.707 1.2 0.910 148 0.1%
30% 230 250.0 0.664 1.2 0.901 137 0.1%
20% 230 250.0 0.621 1.2 0.890 127 0.1%
10% 230 250.0 0.574 0.6 0.871 115 0.1%
Active Idle 230 250.0 0.419 0.6 0.807 77.9 0.1%

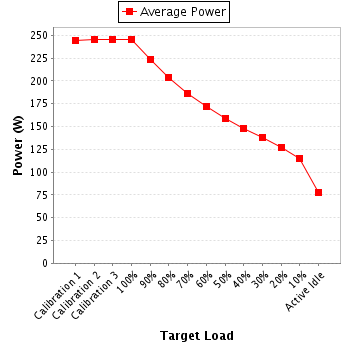

Power details for pwr1
