SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M3 | SPECpower_ssj2008 = 2,927 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nangang, Taipei, Taiwan | Test Date: | Mar 10, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Oct-2009 | Publication: | Apr 7, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

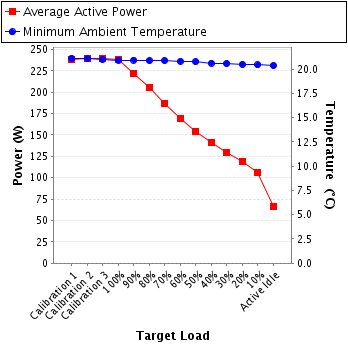

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 238 | 21.1 |
| Calibration 2 | 240 | 21.1 |
| Calibration 3 | 240 | 21.0 |
| 100% | 238 | 20.9 |
| 90% | 222 | 20.9 |
| 80% | 205 | 20.9 |
| 70% | 187 | 20.9 |
| 60% | 170 | 20.8 |
| 50% | 154 | 20.8 |
| 40% | 141 | 20.6 |
| 30% | 130 | 20.6 |
| 20% | 119 | 20.5 |
| 10% | 106 | 20.4 |
| Active Idle | 66.3 | 20.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245648 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-02 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.19 | 2.0 | 0.955 | 238 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.20 | 2.0 | 0.956 | 240 | 0.4% |
| Calibration 3 | 210 | 300.0 | 1.20 | 2.0 | 0.956 | 240 | 0.4% |
| 100% | 210 | 300.0 | 1.19 | 2.0 | 0.955 | 238 | 0.4% |
| 90% | 210 | 300.0 | 1.11 | 2.0 | 0.949 | 222 | 0.4% |
| 80% | 210 | 300.0 | 1.04 | 1.0 | 0.941 | 205 | 0.3% |
| 70% | 210 | 300.0 | 0.959 | 1.0 | 0.931 | 187 | 0.3% |
| 60% | 210 | 300.0 | 0.880 | 1.0 | 0.918 | 170 | 0.4% |
| 50% | 210 | 300.0 | 0.811 | 1.0 | 0.905 | 154 | 0.4% |
| 40% | 210 | 300.0 | 0.752 | 1.0 | 0.890 | 141 | 0.4% |
| 30% | 210 | 300.0 | 0.704 | 1.0 | 0.875 | 130 | 0.4% |
| 20% | 210 | 300.0 | 0.658 | 1.0 | 0.858 | 119 | 0.5% |
| 10% | 210 | 300.0 | 0.607 | 0.5 | 0.831 | 106 | 0.4% |
| Active Idle | 211 | 300.0 | 0.456 | 0.5 | 0.691 | 66.3 | 0.5% |
