IBM Corporation IBM System x iDataPlex dx360 M3 SPECpower_ssj2008 = 3,038 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Mar 10, 2010
Hardware Availability: Jun-2010 Software Availability: Oct-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 469 21.2
Calibration 2 469 21.2
Calibration 3 477 21.2
100% 475 21.2
90% 430 21.2
80% 406 21.2
70% 358 21.2
60% 323 21.2
50% 289 21.2
40% 260 21.2
30% 234 21.2
20% 211 21.2
10% 185 21.2
Active Idle 101 21.2

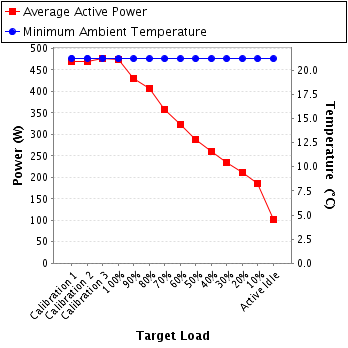

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 09-04-BAC-150-01
Date of Calibration: 13-Apr-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.9-49c8760c
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 2.36 5.0 0.982 469 0.5%
Calibration 2 203 300.0 2.36 5.0 0.982 469 0.5%
Calibration 3 203 300.0 2.40 5.0 0.983 477 0.5%
100% 203 300.0 2.39 5.0 0.983 475 0.5%
90% 203 300.0 2.16 5.0 0.980 430 0.5%
80% 203 300.0 2.05 2.0 0.978 406 0.3%
70% 203 300.0 1.81 2.0 0.975 358 0.3%
60% 203 300.0 1.63 2.0 0.974 323 0.3%
50% 204 300.0 1.46 2.0 0.973 289 0.4%
40% 204 300.0 1.31 2.0 0.972 260 0.4%
30% 204 300.0 1.19 2.0 0.970 234 0.4%
20% 203 300.0 1.07 2.0 0.968 211 0.4%
10% 203 300.0 0.947 1.0 0.960 185 0.3%
Active Idle 204 300.0 0.743 1.0 0.670 101 0.6%
Power details for pwr1
