Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 531,859
ssj_ops@100% per JVM = 132,965
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,133
Calibration 2     531,549
Calibration 3     531,497
ssj_ops@calibrated=531,523
100% 100.1% 531,523 531,859
90% 90.1% 478,371 478,674
80% 79.8% 425,219 424,333
70% 70.3% 372,066 373,648
60% 60.3% 318,914 320,642
50% 49.7% 265,762 264,353
40% 40.1% 212,609 212,929
30% 30.1% 159,457 159,915
20% 20.0% 106,305 106,542
10% 10.0% 53,152 53,169
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-6.001 133,956
Node-6.002 133,447
Node-6.003 133,016
Node-6.004 131,440
ssj_ops@100% 531,859
ssj_ops@100% per JVM 132,965

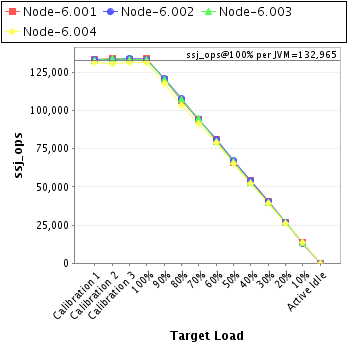

Graph of per-instance results
JVM 'Node-6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,026
Calibration 2     133,907
Calibration 3     133,037
ssj_ops@calibrated=133,472
100% 100.4% 133,472 133,956
90% 89.8% 120,125 119,914
80% 79.6% 106,778 106,209
70% 70.3% 93,431 93,835
60% 60.7% 80,083 80,999
50% 49.2% 66,736 65,714
40% 40.4% 53,389 53,876
30% 30.2% 40,042 40,315
20% 20.0% 26,694 26,684
10% 10.2% 13,347 13,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,180
Calibration 2     133,245
Calibration 3     134,184
ssj_ops@calibrated=133,715
100% 99.8% 133,715 133,447
90% 90.3% 120,343 120,796
80% 80.4% 106,972 107,500
70% 70.3% 93,600 93,966
60% 60.5% 80,229 80,890
50% 50.0% 66,857 66,917
40% 40.3% 53,486 53,830
30% 30.3% 40,114 40,494
20% 20.1% 26,743 26,876
10% 9.7% 13,371 13,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,618
Calibration 2     133,830
Calibration 3     133,208
ssj_ops@calibrated=133,519
100% 99.6% 133,519 133,016
90% 90.1% 120,167 120,234
80% 80.3% 106,815 107,183
70% 70.8% 93,463 94,511
60% 59.9% 80,111 79,953
50% 49.9% 66,759 66,681
40% 39.7% 53,408 53,022
30% 29.8% 40,056 39,796
20% 20.1% 26,704 26,836
10% 10.0% 13,352 13,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,309
Calibration 2     130,567
Calibration 3     131,068
ssj_ops@calibrated=130,817
100% 100.5% 130,817 131,440
90% 90.0% 117,735 117,729
80% 79.1% 104,654 103,441
70% 69.8% 91,572 91,336
60% 60.2% 78,490 78,800
50% 49.7% 65,409 65,041
40% 39.9% 52,327 52,201
30% 30.0% 39,245 39,310
20% 20.0% 26,163 26,146
10% 10.2% 13,082 13,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
