Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 526,996
ssj_ops@100% per JVM = 131,749
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     525,745
Calibration 2     528,641
Calibration 3     529,168
ssj_ops@calibrated=528,905
100% 99.6% 528,905 526,996
90% 89.4% 476,014 472,615
80% 80.2% 423,124 424,210
70% 70.1% 370,233 370,952
60% 59.8% 317,343 316,147
50% 50.1% 264,452 264,902
40% 39.9% 211,562 211,249
30% 30.1% 158,671 159,007
20% 20.0% 105,781 105,539
10% 10.1% 52,890 53,598
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-5.001 134,919
Node-5.002 126,598
Node-5.003 131,965
Node-5.004 133,514
ssj_ops@100% 526,996
ssj_ops@100% per JVM 131,749
Graph of per-instance results
JVM 'Node-5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,992
Calibration 2     134,329
Calibration 3     134,942
ssj_ops@calibrated=134,636
100% 100.2% 134,636 134,919
90% 89.6% 121,172 120,593
80% 79.7% 107,709 107,270
70% 69.9% 94,245 94,141
60% 59.4% 80,781 80,022
50% 50.0% 67,318 67,254
40% 40.2% 53,854 54,078
30% 30.0% 40,391 40,366
20% 20.1% 26,927 27,032
10% 10.3% 13,464 13,824
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,719
Calibration 2     126,879
Calibration 3     127,137
ssj_ops@calibrated=127,008
100% 99.7% 127,008 126,598
90% 90.0% 114,307 114,313
80% 80.3% 101,606 102,016
70% 69.9% 88,906 88,774
60% 60.1% 76,205 76,325
50% 49.7% 63,504 63,103
40% 39.7% 50,803 50,404
30% 29.5% 38,102 37,523
20% 20.1% 25,402 25,548
10% 10.3% 12,701 13,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-5.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,388
Calibration 2     133,893
Calibration 3     133,599
ssj_ops@calibrated=133,746
100% 98.7% 133,746 131,965
90% 89.0% 120,371 118,992
80% 80.6% 106,997 107,766
70% 70.4% 93,622 94,183
60% 59.4% 80,248 79,414
50% 50.6% 66,873 67,639
40% 40.2% 53,498 53,711
30% 30.4% 40,124 40,633
20% 19.6% 26,749 26,185
10% 9.8% 13,375 13,096
Active Idle   0 0

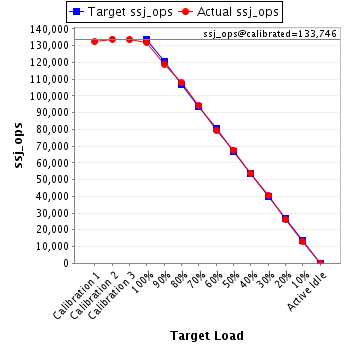

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-5.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,646
Calibration 2     133,540
Calibration 3     133,490
ssj_ops@calibrated=133,515
100% 100.0% 133,515 133,514
90% 88.9% 120,164 118,717
80% 80.3% 106,812 107,159
70% 70.3% 93,461 93,854
60% 60.2% 80,109 80,387
50% 50.1% 66,758 66,905
40% 39.7% 53,406 53,056
30% 30.3% 40,055 40,486
20% 20.1% 26,703 26,774
10% 10.2% 13,352 13,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
