Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 530,783
ssj_ops@100% per JVM = 132,696
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     528,683
Calibration 2     532,081
Calibration 3     531,330
ssj_ops@calibrated=531,706
100% 99.8% 531,706 530,783
90% 90.1% 478,535 478,947
80% 79.8% 425,365 424,044
70% 69.8% 372,194 371,065
60% 60.2% 319,024 319,840
50% 49.8% 265,853 264,537
40% 40.0% 212,682 212,826
30% 29.9% 159,512 159,194
20% 20.0% 106,341 106,102
10% 10.0% 53,171 53,370
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-27.001 133,595
Node-27.002 130,798
Node-27.003 132,920
Node-27.004 133,471
ssj_ops@100% 530,783
ssj_ops@100% per JVM 132,696

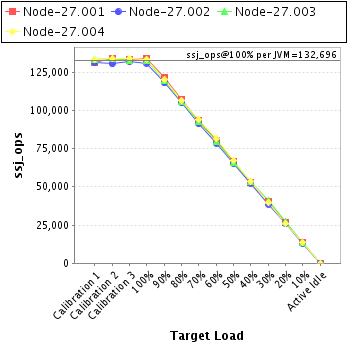

Graph of per-instance results
JVM 'Node-27.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,416
Calibration 2     133,942
Calibration 3     133,055
ssj_ops@calibrated=133,498
100% 100.1% 133,498 133,595
90% 90.9% 120,149 121,316
80% 80.3% 106,799 107,194
70% 69.7% 93,449 93,081
60% 60.2% 80,099 80,379
50% 49.9% 66,749 66,565
40% 39.8% 53,399 53,070
30% 30.0% 40,050 40,092
20% 20.0% 26,700 26,751
10% 10.0% 13,350 13,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-27.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,156
Calibration 2     130,352
Calibration 3     131,670
ssj_ops@calibrated=131,011
100% 99.8% 131,011 130,798
90% 90.0% 117,910 117,906
80% 80.1% 104,809 104,904
70% 69.6% 91,708 91,231
60% 59.9% 78,607 78,455
50% 49.7% 65,505 65,167
40% 40.1% 52,404 52,479
30% 29.6% 39,303 38,752
20% 19.9% 26,202 26,030
10% 9.8% 13,101 12,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-27.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,078
Calibration 2     134,113
Calibration 3     132,773
ssj_ops@calibrated=133,443
100% 99.6% 133,443 132,920
90% 89.8% 120,099 119,803
80% 79.1% 106,754 105,577
70% 69.5% 93,410 92,744
60% 59.7% 80,066 79,688
50% 49.3% 66,722 65,841
40% 40.1% 53,377 53,537
30% 30.6% 40,033 40,776
20% 20.3% 26,689 27,098
10% 10.1% 13,344 13,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-27.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,032
Calibration 2     133,675
Calibration 3     133,831
ssj_ops@calibrated=133,753
100% 99.8% 133,753 133,471
90% 89.7% 120,378 119,922
80% 79.5% 107,003 106,368
70% 70.3% 93,627 94,008
60% 60.8% 80,252 81,318
50% 50.1% 66,877 66,964
40% 40.2% 53,501 53,741
30% 29.6% 40,126 39,574
20% 19.6% 26,751 26,224
10% 10.2% 13,375 13,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
