Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 518,144
ssj_ops@100% per JVM = 129,536
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     526,931
Calibration 2     525,819
Calibration 3     522,662
ssj_ops@calibrated=524,241
100% 98.8% 524,241 518,144
90% 90.2% 471,817 473,060
80% 79.9% 419,392 418,700
70% 70.1% 366,968 367,711
60% 60.0% 314,544 314,611
50% 50.5% 262,120 264,891
40% 40.0% 209,696 209,665
30% 30.3% 157,272 158,843
20% 20.0% 104,848 104,686
10% 10.0% 52,424 52,407
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-13.001 134,043
Node-13.002 126,184
Node-13.003 125,711
Node-13.004 132,205
ssj_ops@100% 518,144
ssj_ops@100% per JVM 129,536

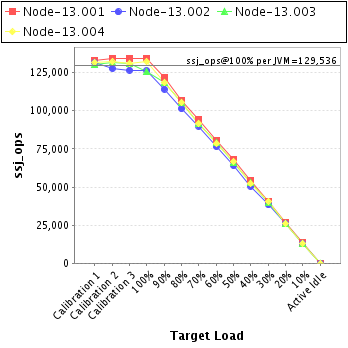

Graph of per-instance results
JVM 'Node-13.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,083
Calibration 2     134,479
Calibration 3     134,114
ssj_ops@calibrated=134,296
100% 99.8% 134,296 134,043
90% 90.6% 120,867 121,642
80% 79.4% 107,437 106,607
70% 70.4% 94,007 94,553
60% 59.9% 80,578 80,397
50% 50.7% 67,148 68,088
40% 40.2% 53,718 53,980
30% 30.1% 40,289 40,358
20% 19.9% 26,859 26,737
10% 10.0% 13,430 13,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-13.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,333
Calibration 2     127,708
Calibration 3     126,655
ssj_ops@calibrated=127,181
100% 99.2% 127,181 126,184
90% 89.8% 114,463 114,220
80% 79.6% 101,745 101,237
70% 70.6% 89,027 89,843
60% 60.1% 76,309 76,490
50% 50.3% 63,591 64,020
40% 39.7% 50,873 50,513
30% 30.1% 38,154 38,293
20% 20.3% 25,436 25,767
10% 9.9% 12,718 12,644
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-13.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,648
Calibration 2     131,620
Calibration 3     130,858
ssj_ops@calibrated=131,239
100% 95.8% 131,239 125,711
90% 90.5% 118,115 118,720
80% 80.3% 104,991 105,398
70% 69.7% 91,867 91,518
60% 60.4% 78,743 79,208
50% 50.4% 65,620 66,126
40% 40.4% 52,496 52,998
30% 30.1% 39,372 39,548
20% 20.0% 26,248 26,221
10% 10.0% 13,124 13,114
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-13.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,866
Calibration 2     132,012
Calibration 3     131,036
ssj_ops@calibrated=131,524
100% 100.5% 131,524 132,205
90% 90.1% 118,372 118,479
80% 80.2% 105,219 105,458
70% 69.8% 92,067 91,797
60% 59.7% 78,914 78,516
50% 50.7% 65,762 66,657
40% 39.7% 52,610 52,174
30% 30.9% 39,457 40,644
20% 19.7% 26,305 25,961
10% 10.0% 13,152 13,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
