Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 530,164
ssj_ops@100% per JVM = 132,541
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,966
Calibration 2     530,675
Calibration 3     531,751
ssj_ops@calibrated=531,213
100% 99.8% 531,213 530,164
90% 89.7% 478,092 476,646
80% 80.1% 424,971 425,590
70% 70.1% 371,849 372,474
60% 59.6% 318,728 316,466
50% 49.9% 265,607 264,977
40% 40.1% 212,485 212,855
30% 30.0% 159,364 159,524
20% 19.9% 106,243 105,854
10% 10.1% 53,121 53,731
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-11.001 134,215
Node-11.002 131,712
Node-11.003 132,647
Node-11.004 131,590
ssj_ops@100% 530,164
ssj_ops@100% per JVM 132,541

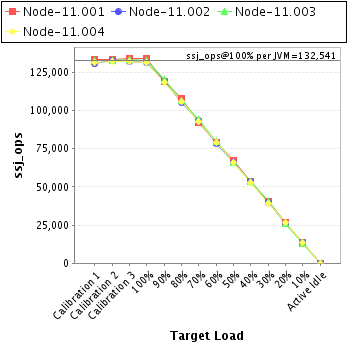

Graph of per-instance results
JVM 'Node-11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,352
Calibration 2     133,143
Calibration 3     134,069
ssj_ops@calibrated=133,606
100% 100.5% 133,606 134,215
90% 89.1% 120,246 119,101
80% 80.9% 106,885 108,036
70% 68.9% 93,524 92,017
60% 59.2% 80,164 79,087
50% 50.1% 66,803 66,994
40% 40.0% 53,443 53,399
30% 30.2% 40,082 40,371
20% 20.1% 26,721 26,818
10% 10.2% 13,361 13,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,448
Calibration 2     132,449
Calibration 3     132,236
ssj_ops@calibrated=132,342
100% 99.5% 132,342 131,712
90% 90.0% 119,108 119,141
80% 79.7% 105,874 105,456
70% 70.6% 92,639 93,496
60% 59.4% 79,405 78,635
50% 50.0% 66,171 66,212
40% 40.3% 52,937 53,317
30% 29.9% 39,703 39,560
20% 19.9% 26,468 26,286
10% 10.4% 13,234 13,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,811
Calibration 2     132,747
Calibration 3     133,375
ssj_ops@calibrated=133,061
100% 99.7% 133,061 132,647
90% 90.4% 119,755 120,267
80% 79.9% 106,449 106,289
70% 70.9% 93,143 94,367
60% 59.8% 79,837 79,552
50% 49.5% 66,531 65,928
40% 40.3% 53,224 53,588
30% 30.2% 39,918 40,203
20% 19.6% 26,612 26,102
10% 9.9% 13,306 13,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,355
Calibration 2     132,336
Calibration 3     132,071
ssj_ops@calibrated=132,204
100% 99.5% 132,204 131,590
90% 89.4% 118,983 118,137
80% 80.0% 105,763 105,809
70% 70.0% 92,543 92,594
60% 59.9% 79,322 79,193
50% 49.8% 66,102 65,842
40% 39.7% 52,882 52,551
30% 29.8% 39,661 39,389
20% 20.2% 26,441 26,648
10% 10.0% 13,220 13,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
